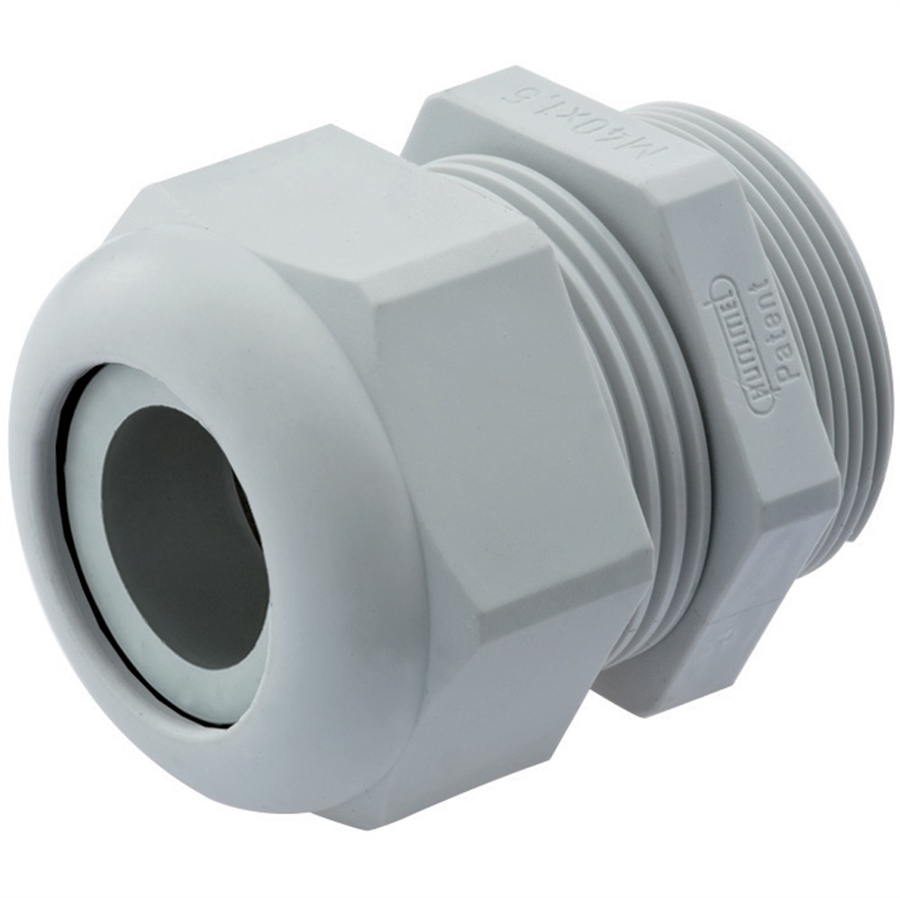

Sealcon CD20MR-GY high quality gray nylon liquid tight strain relief cord grips are designed for the toughest applications. Also known as Hummel #1.209.2000.51. Sold Individually.
Locking nut & O-Ring sold separately
Specifications
- Thread Size: M20 x 1.5
- Cable O.D. Range: .20" - .35" (5 - 9 mm)
- Through Hole Diameter: .79" (20 mm)
- Body Length: 1.06" (27 mm)
- Thread Length: .35" (9 mm)
- Wrench Flat Dome: .94" (24 mm)
- Wrench Flat Body: .94" (24 mm)
Features
- Nylon 6/6 Material with Buna-N Seal
- Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
- 150 psig (10 bar) Pressure Rating
- Flame Protected to UL 94
- Halogen and Phosphorous Free
- Vibration Resistant Ratchet Dome
- Resists salt water, acids, alkalis', gasoline & oils.
- Durable Rugged Construction
- RoHS & Deca BDE, CSA approval
Approvals
- RoHS Compliance
- Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals
- Waste Electrical and Electronic Equipment Directive
- UL / CUL Listed
- UL Registered
- EAC
- CE
- German Lloyd
- VDE
Cross Reference
- Lütze 600691 (Cable O.D. 5-13mm)
- Jacob 50013M20PAR
- Olflex S1613 (Cable O.D. 0.2"-0.39")
Sealcon M20 x 1.5 Metric Nylon / Plastic Cord Grips, Strain Relief Fittings or Cable Glands are used to help customers in all industries connect their cable or wire to their applications. This fitting provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Sealcon patented overlapping clamping splines, recessed custom grommets help protect your cable from damage and the elements. The CD20MR-GY fitting provides a substantial amount of Pull-out resistance by applying concentric force on all points of the cable.
Sealcon CD20MR-GY M20 Reduced Insert Fitting
|
|
|
