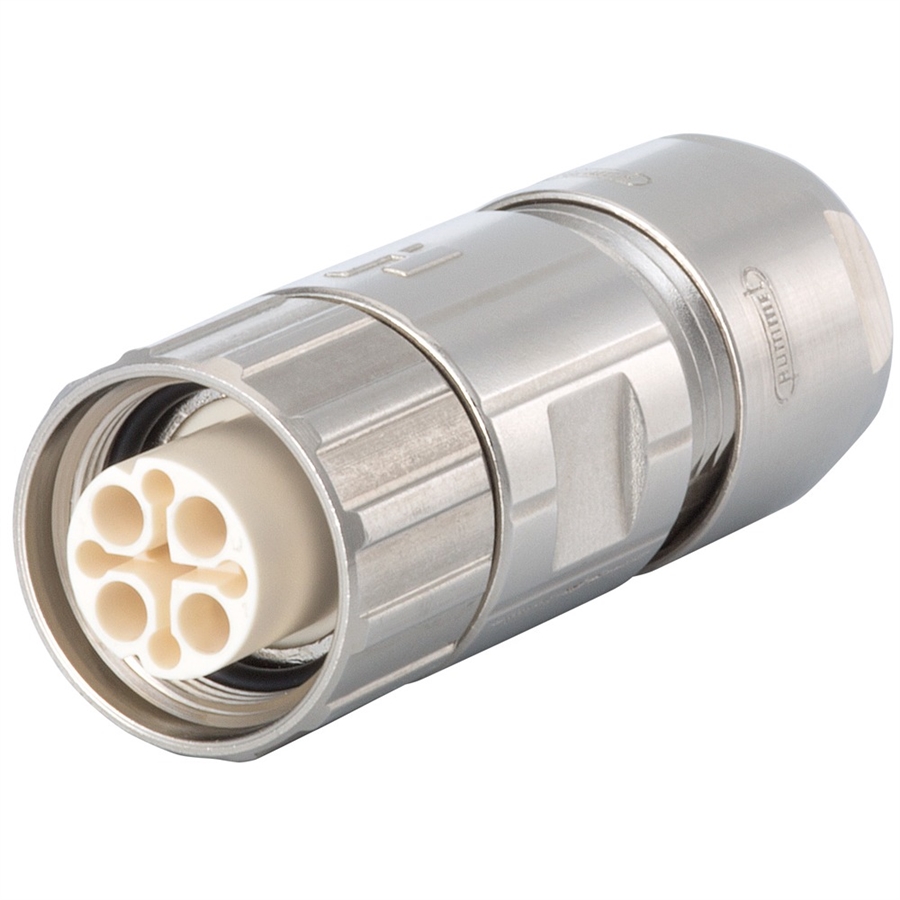

This Sealcon M16 female straight signal connector features a 7 pin insert (6 + Ground) for 1.25 mm contacts. The housing is nickel plated brass with brass alloy contacts. The housing can accept 5-9 mm cable. Rated IP67 / IP69K. Comes un-assembled with separate housing, insert, and crimp contacts.
Note: Image is for reference, actual product may differ
- S7.010.900.151 insertion/removal tool required (see accessories below)
- Euro-Lock keeps contacts in position
- EMI shielding
- Perfect for small drives
Includes:
- Housing - (1) 5-9 mm (.2"-.35") Cable O.D. (P/N S7.810.400.000)

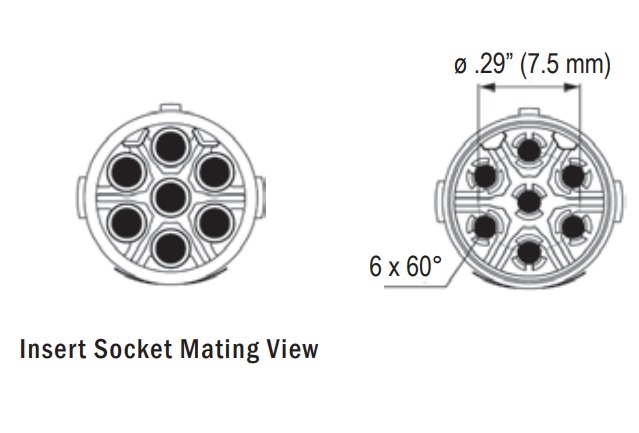

- Insert - (1) 6 pin + Ground, 16 A, 600V, for crimp contacts (P/N S7.003.961.102)
- Contacts - (7) 22-16 AWG 1.25 mm Crimp Sockets (P/N S7.010.981.212)
Specifications
- Housing - Nickel Plated Brass

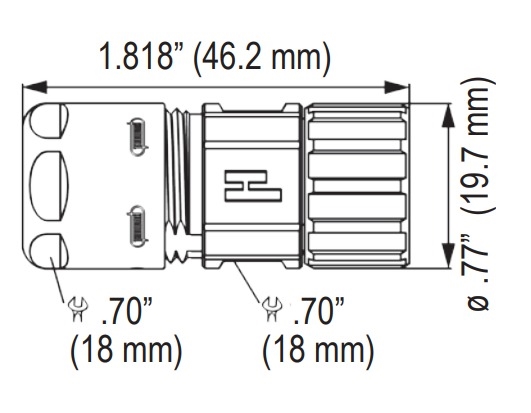

- Housing Dimensions- 1.818" Length x 0.77" Diameter
- Insert - PBT
- Contacts - Brass Alloy
- Contact Surface - Gold Plated Nickel
- Orientation - Female Straight
- Cable Range - 5 - 9 mm (.2"- .35")
- Contacts - 7 (6 + Ground)
- Crimp Wire Gauge - 22-16 AWG
- Operating Temperature - -40 F to 257 F (-40 C to 125 C).
- Nominal Current - 16 Amps
- Nominal Voltage - 600 V
- Min. Mating Cycles- >1000
- Insulation Resistance - >10^10 MOhm
- Max. Contact Resistance - 3 mOhm
- Mating Thread - M16
- Type of Connection - Crimp Contact
- IP Protection - IP 67 / IP 69 K
Housing, insert, and crimp contacts can be sold separately. Custom configurations are also available. Contact us at 800-966-2345 for more info.
