Sealcon CD22DA-BR Nickel Plated Brass M20 Dome .39" - .55" (10 - 14 mm) O.D. Elongated Cord Grip

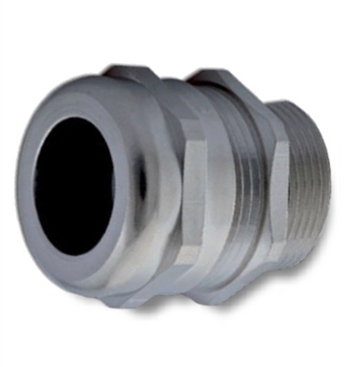

Sealcon CD22DA-BR Elongated Thread Cable Gland
Sealcon CD22DA-BR M20 Dome .39" - .55" (10 - 14 mm) O.D. Elongated Cord Grip



Alternative Views:


Price: $13.77
MFG P/N: CD22DA-BR
MFG: Sealcon
Weight (lbs): 0.15

Quantity in Stock :31


Availability:
In Stock
Product Code: CD22DA-BR
Qty:


Description


Sealcon CD22DA-BR high quality nickel plated brass cord grip with elongated thread is designed for the toughest applications. Also known as Hummel 1.609.2016.30. Sold Individually. Locking nut sold separately

Specifications

  • Thread Size: M20 x 1.5
  • Cable O.D. Range: .39" - .55" (10 - 14 mm)
  • Through Hole Diameter: .79" (20 mm)
  • Body Length: .94" (24 mm)
  • Thread Length: .39" (10 mm)
  • Wrench Flat Dome: .94" (24 mm)
  • Wrench Flat Body: .94" (24 mm)

Features

  • Nickel Plated Brass Material with Buna-N Seal & Nylon 6/6 Splined Bushing
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd
  • VDE

Sealcon Elongated M20 x 1.5 Metric Nickel Plated Brass cord grips are used in almost any industry when attaching cable or wire to a wide variety of applications. Also known as a cable gland or strain relief fitting, it provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. The CD22DA-BR allows you to increase or decrease the size of the cable opening just by switching out the standard and reduced inserts. The self locking ACME thread on the dome top ensures that the overlapping splines apply an even seal, keeping the form seal from being pulled out of the fitting. It also provides pull-out protection for your cable so no damage is caused. Fittings with elongated threads are commonly used when they need to go through a thick wall, or simply if a longer thread length more efficiently serves the application. Note: Contact us about purchasing individual standard or reduced inserts

Sealcon M20 Metric Brass Cord Grip CD22DA-BR

Additional Product Information
Metric Elongated Thread Brass Dome Fittings
Part Numbers Cable Range Thread Range
CD12DA-BR .12" - .26" (3 - 6.5 mm) M12 x 1.5
CD12DR-BR .08" - .20" (2 - 5 mm) M12 x 1.5
CD16DA-BR .16" - .31" (4 - 8 mm) M16 x 1.5
CD16DR-BR .08" - .24" (2 - 6 mm) M16 x 1.5
CD17DA-BR .20" - .39" (5 - 10 mm) M16 x 1.5
CD17DR-BR .12" - .28" (3 - 7 mm) M16 x 1.5
CD20DA-BR .24" - .47" (6 - 12 mm) M20 x 1.5
CD20DR-BR .20" - .35" (5 - 9 mm) M20 x 1.5
CD22DA-BR .39" - .55" (10 - 14 mm) M20 x 1.5
CD22DR-BR .28" - .47" (7 - 12 mm) M20 x 1.5
CD25DA-BR .51" - .71" (13 - 18 mm) M25 x 1.5
CD25DR-BR .35" - .63" (9 - 16 mm) M25 x 1.5
CD32DA-BR .71" - .98" (18 - 25 mm) M32 x1.5
CD32DR-BR .51" - .79" (13 - 20 mm) M32 x1.5
CD40DA-BR .87" - 1.26" (22 - 32 mm) M40 x 1.5
CD40DR-BR .79" - 1.02" (20 - 26 mm) M40 x 1.5
CD50DA-BR 1.26" - 1.50" (32 - 38 mm) M50 x 1.5
CD50DR-BR .98" - 1.22" (25 - 31 mm) M50 x 1.5
CD63DA-BR 1.46" - 1.73" (37 - 44 mm) M63 x 1.5
CD63DR-BR 1.14" - 1.38" (29 - 35 mm) M63 x 1.5
