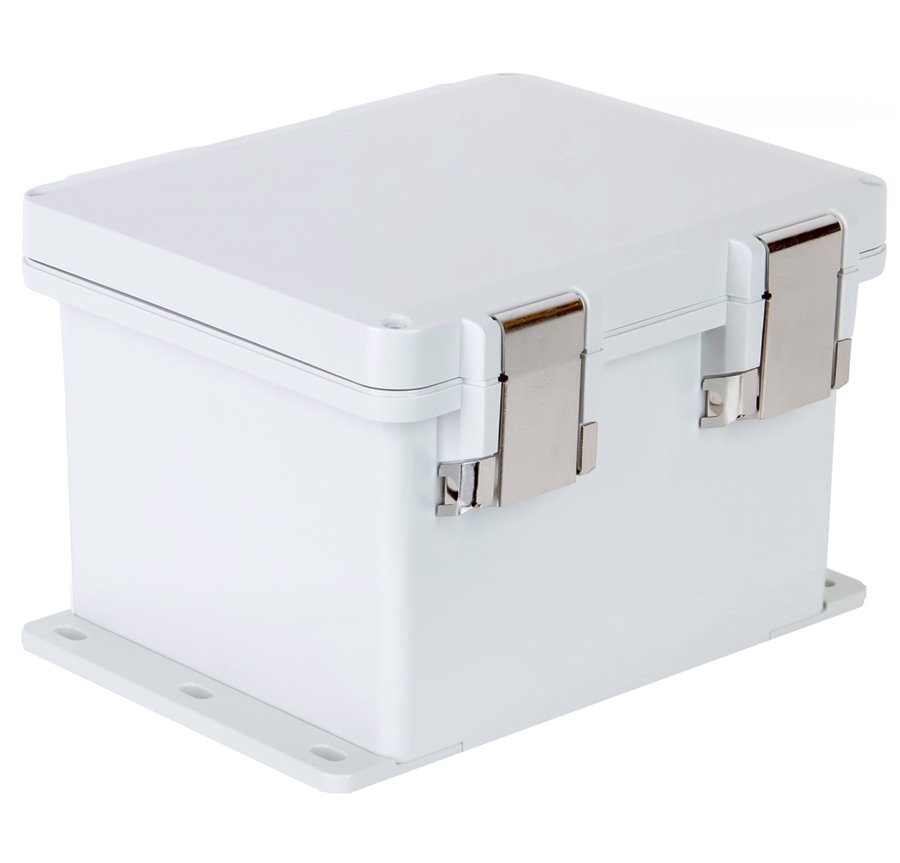

The Sealcon SUPCG060810HMLF wall mount hinged lid enclosure is made from polycarbonate with a solid gray cover, metal latches, and mounting flange. Also known as Ensto UPCG100806HMLF

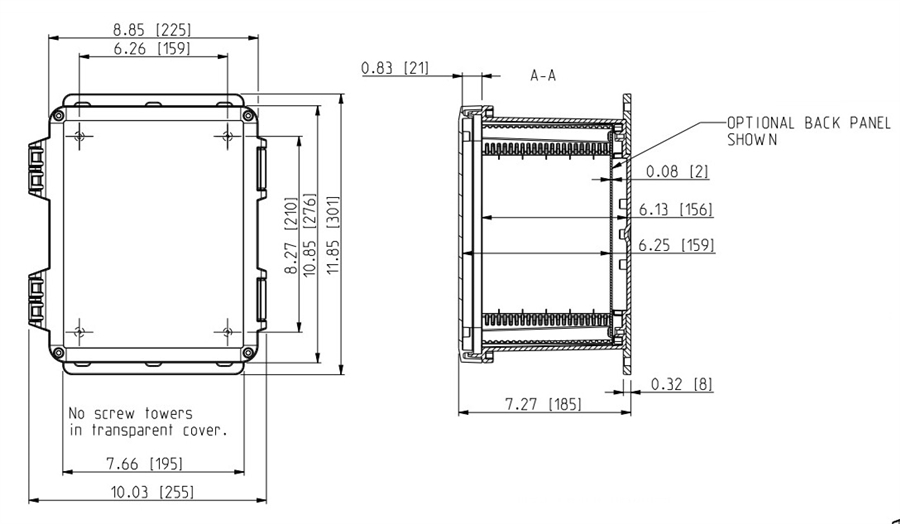

- Dimensions (with mounting flange): 11.85" Length x 10.03" Width x 7.27" Depth
- -40 C to 80 C (-40 F to 176 F)
- Type 4X, 12, 13, 6P
- Corner 'elevator' brackets to mount the back panel at the desired depth (preinstalled at the bottom)
- Elevator pieces can be mounted at 1/4" increments
- Lid can be locked with a padlock
- 4 mm wall thickness (0.15")
- Hydrophobic PUR gasket
- Impact test: IK10
- Insulation: Class II
- Rated IP 69 (Total protection from dust and high temperature / high pressure water jets from any direction)
- Includes cover screws & screws for mounting flange
- Approvals: CE, RoHS Compliant, UL & CUL Listed
