Saginaw SCE-4PBA Sloped Front Push Button Enclosure, 4 Position, 30.5mm, 1x4

Saginaw Sloped Front Push Button Box, 4 Position, 30.5mm

Alternative Views:

Price: $127.24

Note: Ships in 5-7 business days, contact us to confirm current ship date
MFG P/N: SCE-4PBA
MFG: Saginaw Control & Engineering
Weight (lbs): 5

Availability: In Stock
Product Code: SCE-4PBA

Qty:

Description

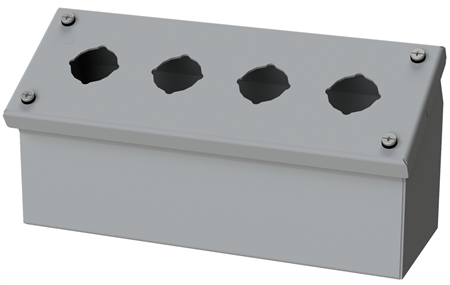

Saginaw Control & Engineering SCE-4PBA is a 4 position sloped front push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and four 30.5mm pushbutton entrances in a 1x4 configuration. Ideal for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture where a slanted surface is needed.

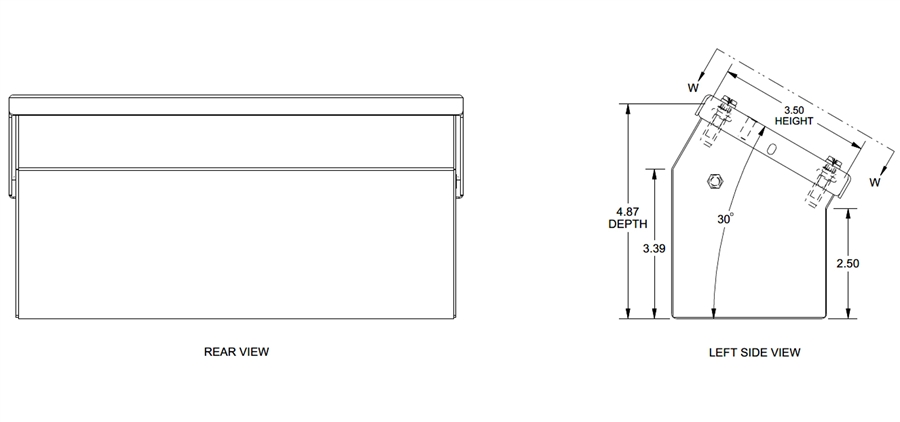

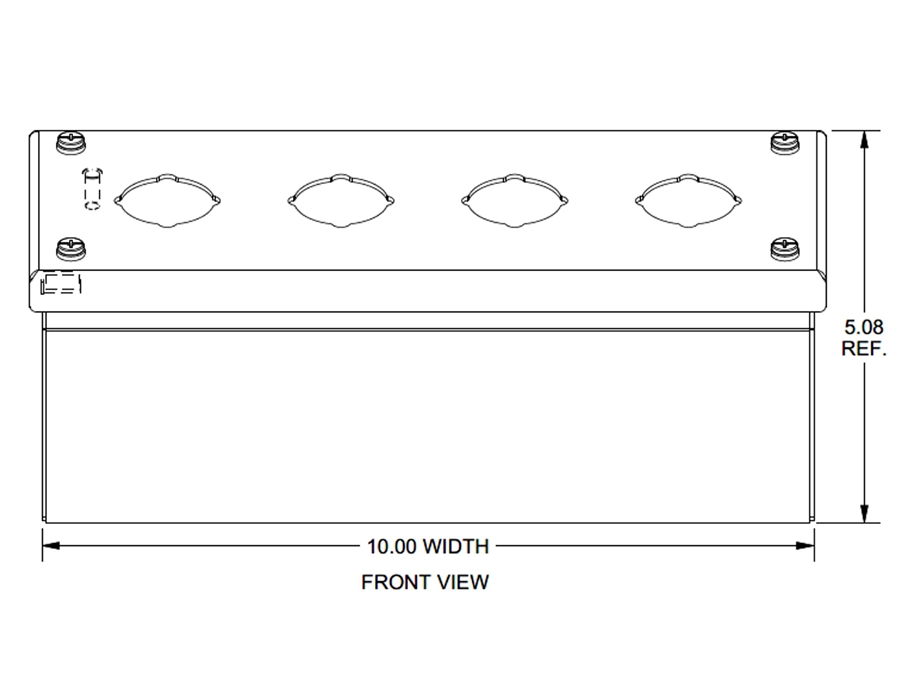

3.5" H x 10" W x 4.87" D (89mm x 254mm x 123.7mm)
Continuously welded seams
Cover screws thread into sealed wells
Compatible with any brand of oil-tight push buttons, switches, or pilot lights
4 way standard push button entrance
Gasket is oil & water resistant
Comes with mounting feet
IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66

Industrial Enclosure & Junction Box Selector
