Saginaw SCE-1PB Push Button Enclosure, 1 Position, 30.5mm

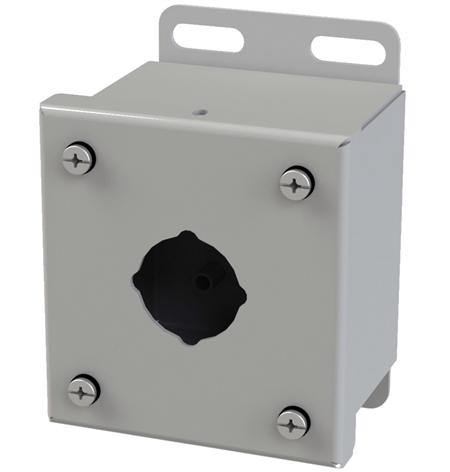

Saginaw SCE-1PB Push Button Box, 1 Position, 30.5mm
Saginaw SCE-1PB Push Button Enclosure, 1 Position, 30.5mm

Alternative Views:
Price: $57.85
Note: Ships in 5-7 business days, Priority Shipping Unavailable. If stock is depleted, average factory lead time is 2-4 weeks. Contact us to confirm current ship date
MFG P/N: SCE-1PB
MFG: Saginaw Control & Engineering
Weight (lbs): 2



Availability: In Stock
Product Code: SCE-1PB
Qty:

Description


Saginaw Control & Engineering SCE-1PB is a 1 position push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and a 30.5mm pushbutton entrance. Used for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture.

  • 3.5" H x 3.25" W x 2.75" D (89mm x 82.55mm x 69.85mm)
  • Seams are continuously welded
  • Cover screws thread into sealed wells
  • Accepts any brand of oil-tight push buttons, switches, or pilot lights
  • Pour in place gasket is oil & water resistant
  • Welded mounting provision on the back at the top and bottom
  • IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66
