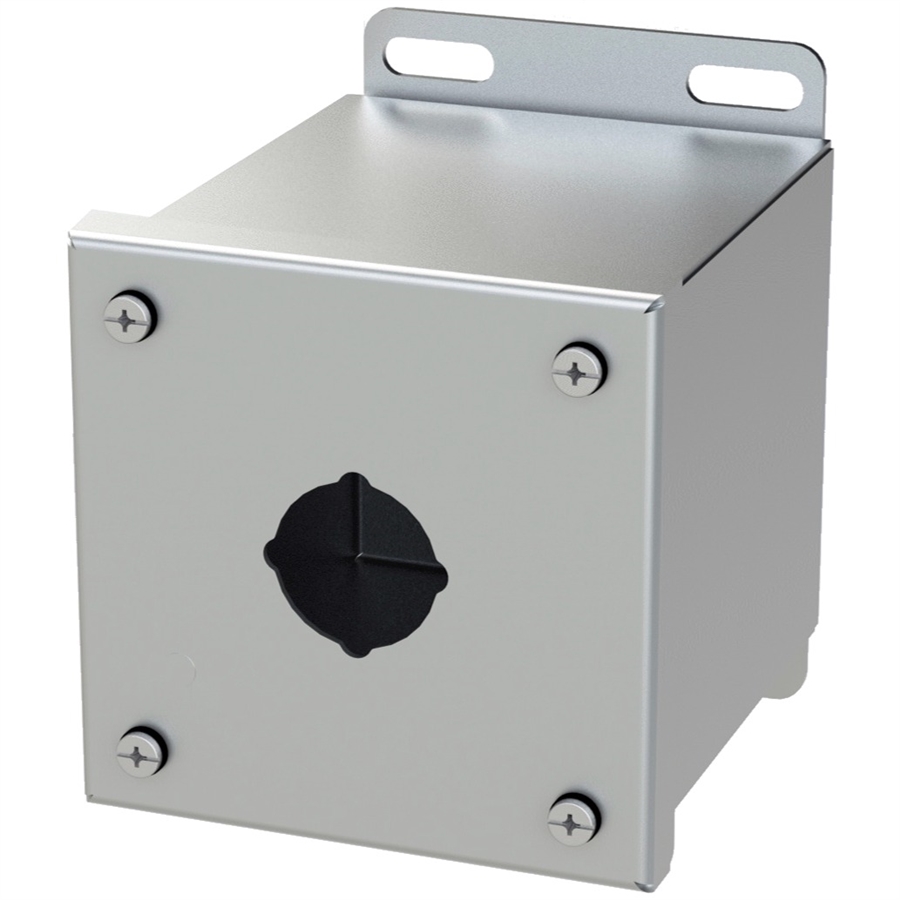

Saginaw Control & Engineering SCE-1PBXSS is a 1 position extra deep push button enclosure. It is made from 0.063" 304 stainless steel with a #4 brushed finish and a 30.5mm pushbutton entrance. Ideal for keeping oil-tight push buttons, switches, and pilot lights protected in hose down applications or corrosive environments.

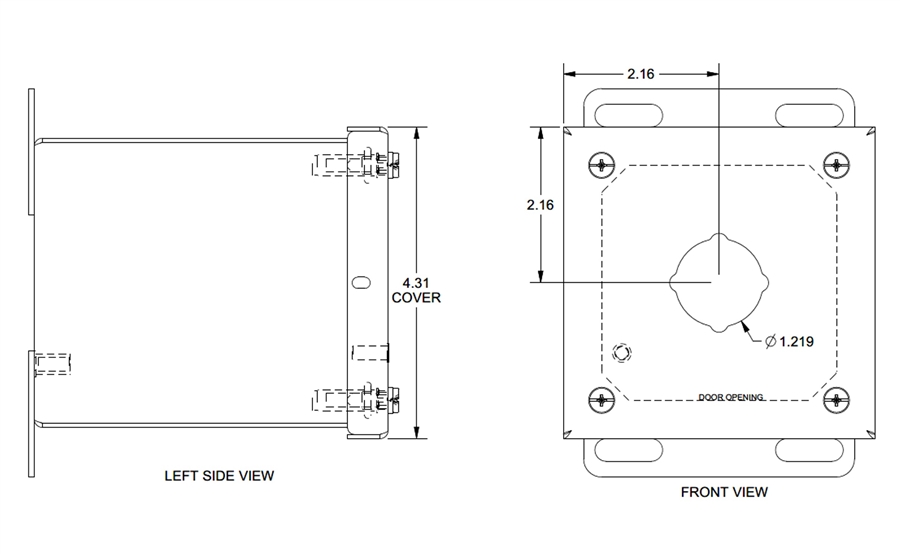

- 4" H x 4" W x 4.75" D (101.6mm x 101.6mm x 120.65mm)
- Continuously welded seams
- Cover screws thread into sealed wells
- Compatible with any brand of oil-tight push buttons, switches, or pilot lights
- 4 way standard push button entrance
- Cover is removable
- Gasket is oil & water resistant
- Welded mounting provision located on the back at the top and bottom
- IS5 industry standards - NEMA Type 4, 4x, 12 and Type 13, UL Listed Type 4, 4x, and 12, CSA Type 4, 4x, and 12, IEC 60529, IP 66
|
|
|
 |
|
 |
|
