Saginaw Control & Engineering SCE-1PBSS is a 1 position push button enclosure. It is made from 0.063" 304 stainless steel with a #4 brushed finish and a four way 30.5mm pushbutton entrance. Used for keeping oil-tight push buttons, switches, and pilot lights in hose down applications or corrosive environments.

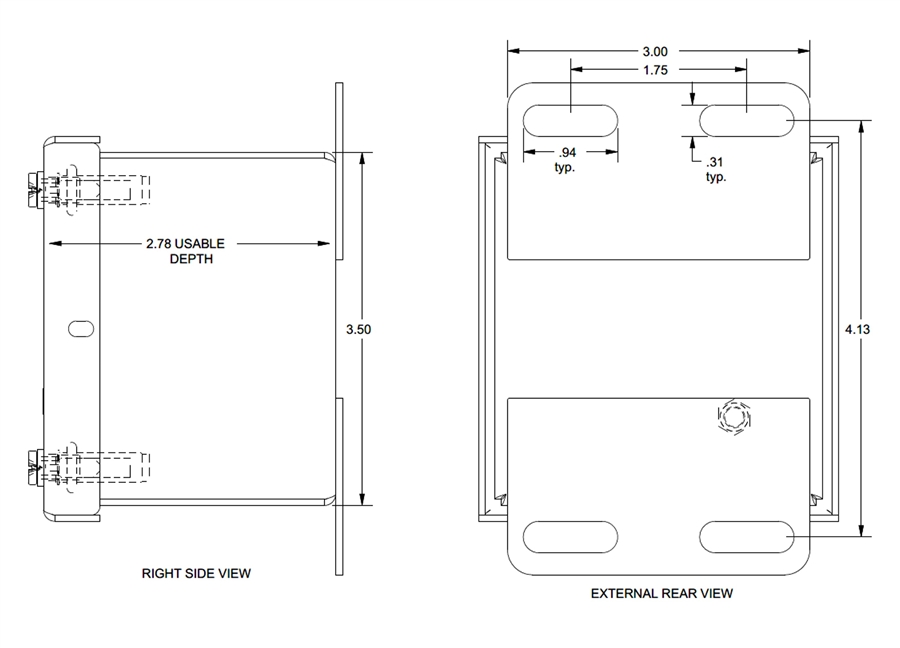

- 3.5" H x 3.25" W x 2.75" D (89mm x 82.55mm x 69.85mm)
- Seams are continuously welded
- Cover screws thread into sealed wells
- Accepts any brand of oil-tight push buttons, switches, or pilot lights
- Cover is removable
- Pour in place gasket is oil & water resistant
- Welded mounting provision on the back at the top and bottom
- IS5 industry standards - NEMA Type 4, 4x, 12, and Type 13, UL Listed Type 4, 4x, and 12, CSA Type 4, 4x, and 12, IEC 60529, IP 66
|
|
|
 |
|
 |
|
