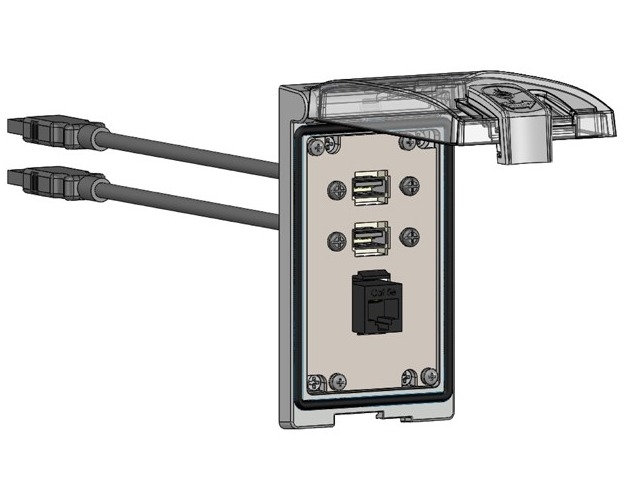

The Mencom LP1-RJ45-2USB-10 panel interface connector (PIC) features a female/female Ethernet RJ45 port and two 10 foot USB Type A connector cable ports in a single cover housing. Housing is rated IP 65 and features a sliding lock mechanism that can be opened using a flat head screwdriver. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.
Specifications
- Body- Nickel Plated Zinc
- Front Cover- Polycarbonate
- Latch & Lock- PBT
- Gasket- Nitrile/UL70
- Housing- Single Cover Low Profile Housing

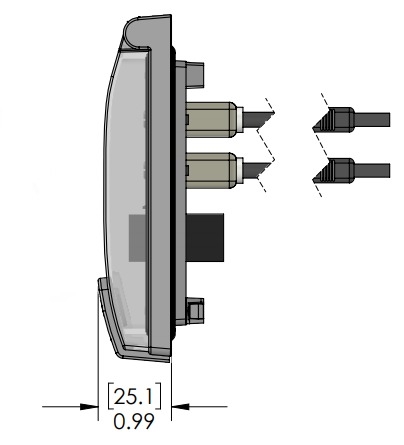

- Housing Dimensions- 2.57" Width x 4.6" Height x 0.99" Depth
- RJ / Ethernet- RJ45 Female/Female Ethernet
- USB- (2) 10 Foot Cable, Female Form A to Male Form A
- Torque- 0.9 N-m (0.675 Lb-Ft)

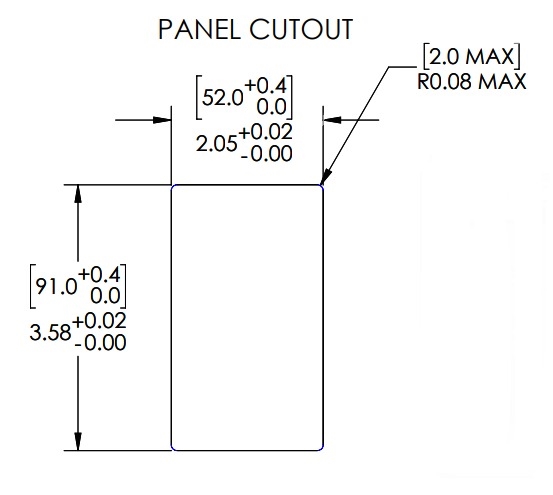

- Panel Thickness- 5mm max.
- UL Rating- UL Type 4, (4X), 12
- IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
|
|
|
 |
|
 |
|
