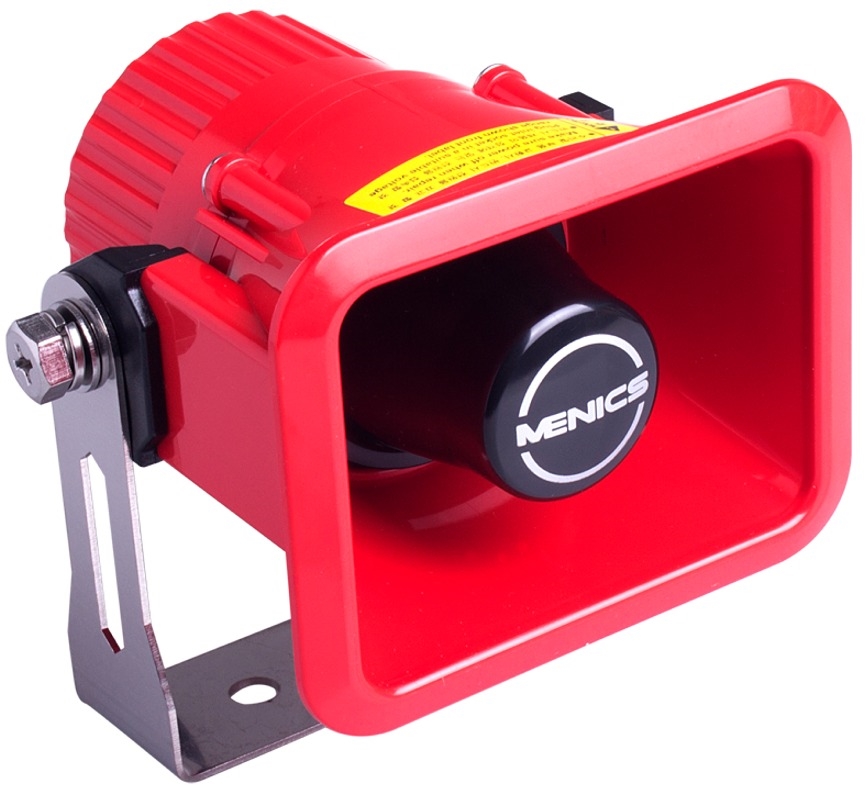

The Menics MSP-LBM-01-R is a red wall bracket mount alarm buzzer with a lead wire connection and a rated voltage of 12V DC. Plays one of 3 melodies, depending on the wiring (see diagram below). Front panel is rated IP 65, which is helpful in areas with excess dust or moisture. Features a space saving housing. RoHS compliant.
Specifications
- Alarm Dimensions (with bracket)- 121.8 mm Width x 120.5 mm Height x 114 mm Length (4.8" x 4.74" x 4.5")
- Connection- Lead Wire (see below for model with terminal connection)
- Mounting- External (see below for panel mount version)
- Sound Type- 3 Channel Melody (For Elise, Home Sweet Home, Cuckoo Waltz) - see below for 3 channel siren model
- Rated Voltage- 12V DC
- Current Consumption- 0.22 Amp
- Alarm Housing Color- Red with Black Horn
- Housing Material- ABS Plastic Body with NBR Horn
- Max Volume- 100 decibels (1 Meter)
- Insulation Resistance- Over 100 MOhm (500V DC mega between terminal & case)
- Withstand Voltage- 500V AC 50/60Hz 1 min.
- Operating Temperature- -20 C to 50 C (-4 F to 122 F)
- Storage Temperature- -20 C to 65 C (-4 F to 149 F)
- Operating Humidity- 45-85% Relative Humidity
- Wire Size & Length- 2464 UL / 22 AWG, 6P, 450mm
- Protection Rating- IP 65 (Total protection from dust and water jets from any direction)
- Approvals- RoHS Compliant
Installation: The alarm bracket is held in place by two M8 bolts which come with the alarm. Bracket mounting holes are 50mm apart. If it is being mounted outside make sure the housing is facing downwards to prevent water from collecting inside. Adjust the speaker angle as desired and then tighten the angle adjustment bolts on the sides (tightening torque: 5-6N.m). Please note that vibration absorbing rubber should be used if mounting in an area with a lot of vibration.
