Menics MSP-HB15 Bracket Mount Horn Speaker, White

Bracket Mount Horn Speaker, White
Menics MSP-HB15 Bracket Mount Horn Speaker, White

Alternative Views:
Price: $69.62
Note: Delivery: 2-5 Business Days
MFG P/N: MSP-HB15
MFG: Menics
Weight (lbs): 1

Quantity in Stock :2


Availability: In Stock
Product Code: MSP-HB15
Qty:

Description

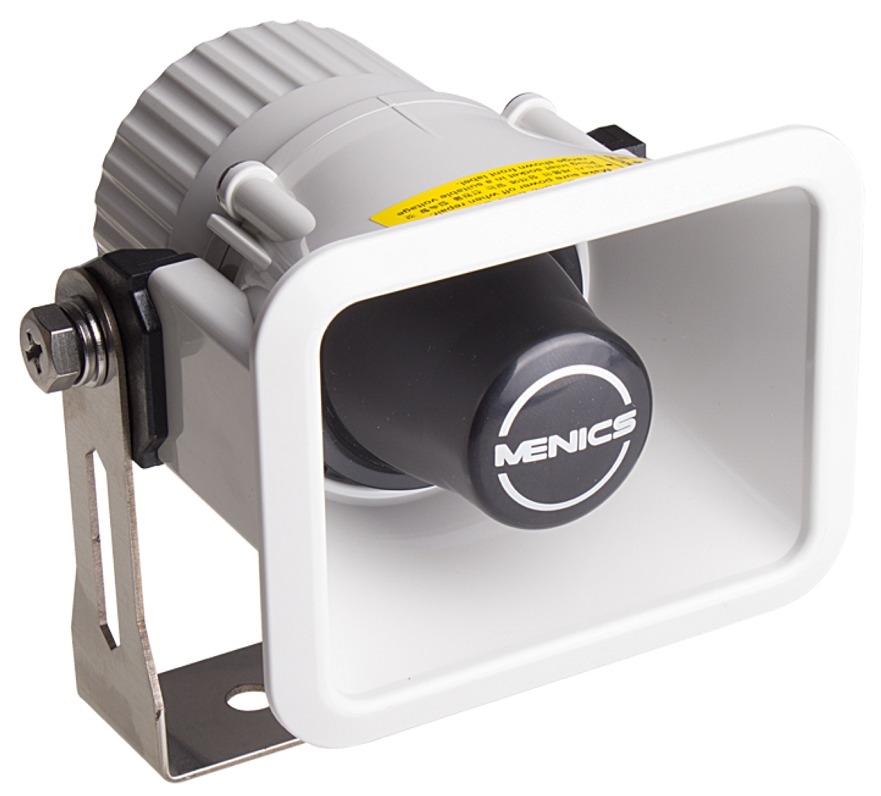

The Menics MSP-HB15 is a white bracket mount horn speaker with a 15W output and max volume of 108 dB. Features a light weight, space saving housing. Made to be attached onto a wall or directly onto equipment rather than a panel. The speaker angle can be adjusted after installation. Speaker is rated IP 60. RoHS compliant.

Specifications

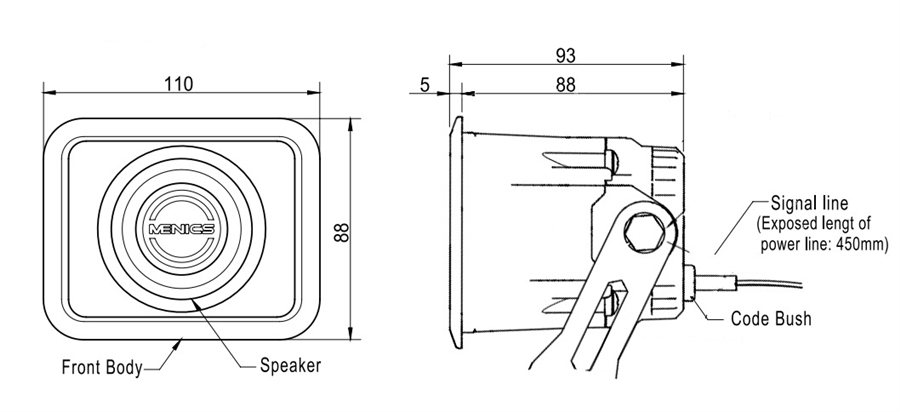

  • Speaker Housing Dimensions (without bracket)- 110 mm Width x 88 mm Height x 93 mm Length (4.33" x 3.46" x 3.66")

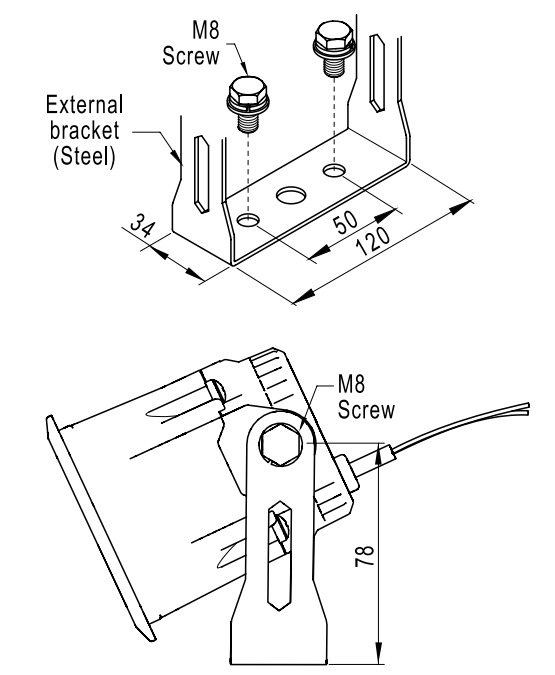

  • Bracket Dimensions- 120 mm Length x 34 mm Width x 78 mm Height (4.72" x 1.34" x 3.07")
  • Housing Color- White with Black Horn
  • Housing Material- ABS Plastic Body with NBR Horn
  • Mounting- Bracket Mount
  • Max Rated Output- 15 Watts
  • Impulse- 6 Ohm
  • Frequency Band- 1000-4000 Hz
  • Max Volume- 108 decibels (at 1 meter)
  • Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
  • Storage Temperature- -20 C to 65 C (-4 F to 149 F)
  • Vibration Resistance- 10~55Hz (Cycle: 1 minute) Multi-amplitude, 0.75mm X,Y,Z - 1 hour in each direction
  • Applicable Wiring Specification- 2464 UL / 22 AWG, 2P, 450 mm (17.72")
  • Protection Rating- IP 60 (Total protection from dust)
  • Approvals- RoHS Compliant
