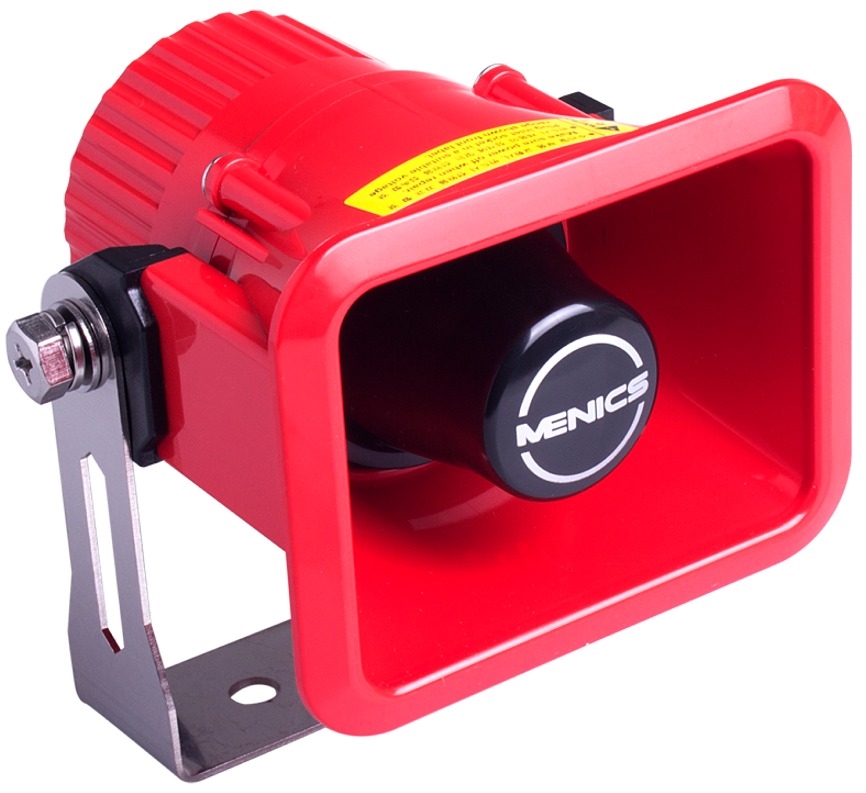

The Menics MSP-LBM-FF-R is a red wall bracket mount alarm buzzer with a lead wire connection and a rated voltage of 100-240V AC. Plays one of 3 melodies, depending on the wiring (see diagram). Front panel is rated IP 65, which is helpful in environments with excess dust or moisture. Features space saving housing. RoHS compliant.
Specifications

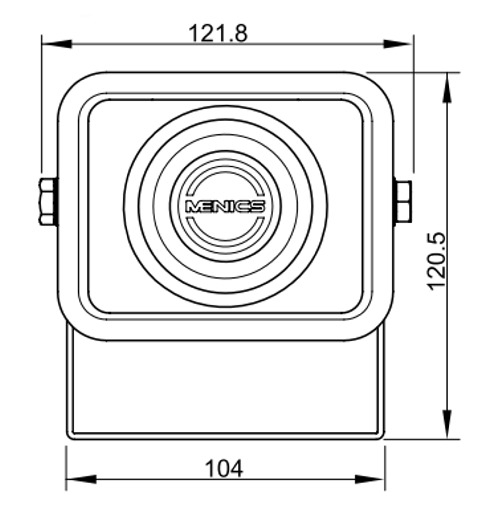

- Alarm Dimensions (with bracket)- 121.8 mm Width x 120.5 mm Height x 114 mm Length (4.8" x 4.74" x 4.5")
- Connection- Lead Wire (see MSP-TBM-FF-R below for model with terminal connection)
- Mounting- External (see MSP-LPM-FF-R below for panel mount version)
- Sound Type- 3 Channel Melody (For Elise, Home Sweet Home, Cuckoo Waltz) - see MSP-LBS-FF-R below for 3 channel siren
- Rated Voltage- 100-240V AC
- Current Consumption- 0.13 Amp
- Alarm Housing Color- Red with Black Horn
- Housing Material- ABS Plastic Body with NBR Horn
- Max Volume- 100 decibels (1 Meter)
- Insulation Resistance- Over 100 MOhm (500V DC mega between terminal & case)
- Withstand Voltage- 500V AC 50/60Hz 1 min.
- Operating Temperature- -20 C to 50 C (-4 F to 122 F)
- Storage Temperature- -20 C to 65 C (-4 F to 149 F)
- Operating Humidity- 45-85% Relative Humidity
- Wire Size & Length- 2464 UL / 22 AWG, 6P, 450mm
- Protection Rating- IP 65 (Total protection from dust and water jets from any direction)
- Approvals- RoHS Compliant
Installation: Two M8 bolts come included and are used to hold the wall bracket in place. Bracket mounting holes are 50mm apart. If it is being mounted outdoors the housing should face downwards to prevent water or anything else from collecting inside. Once the bracket is secure, angle the speaker as needed and then tighten the adjustment bolts on the sides (tightening torque: 5-6N.m). Please note that vibration absorbing rubber should be used if mounting in an area with a lot of vibration.
