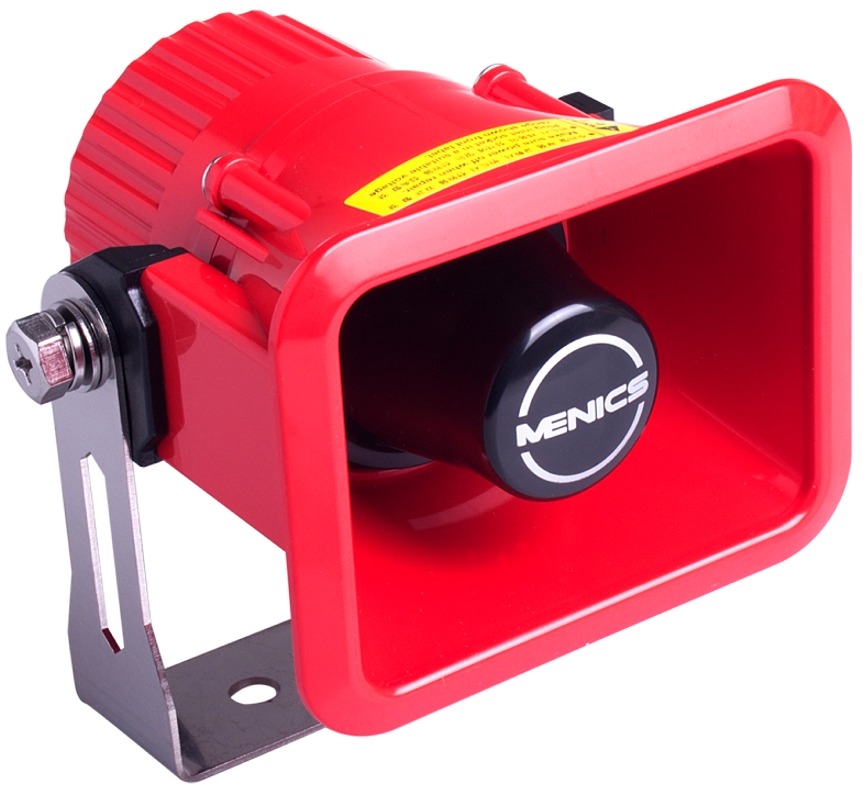

The Menics MSP-HB15-R is a red bracket mount horn speaker with a 15W output and max volume of 108 dB. Features a light weight, space saving housing. Made to be attached onto a wall or directly onto equipment rather than a panel. The speaker angle can be adjusted after installation. Speaker is rated IP 60. RoHS compliant.
Specifications

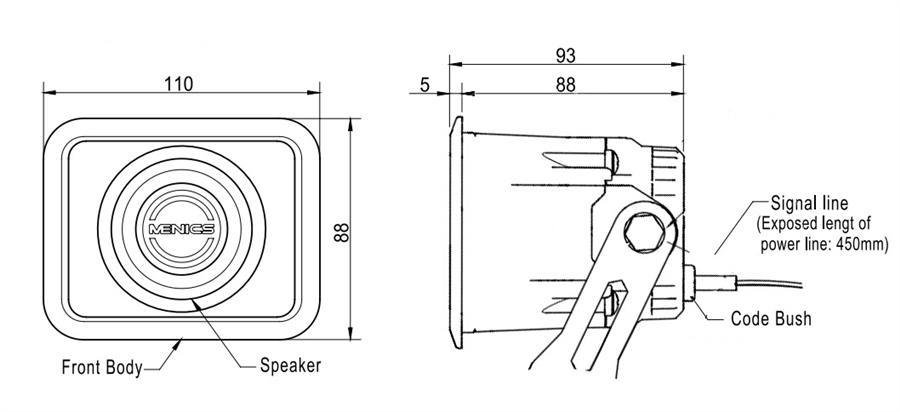

- Speaker Housing Dimensions (without bracket)- 110 mm Width x 88 mm Height x 93 mm Length (4.33" x 3.46" x 3.66")

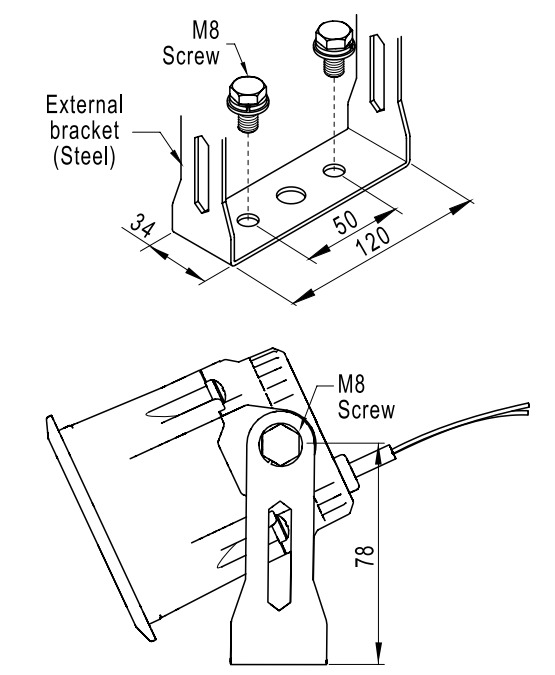

- Bracket Dimensions- 120 mm Length x 34 mm Width x 78 mm Height (4.72" x 1.34" x 3.07")
- Housing Color- Red with Black Horn
- Housing Material- ABS Plastic Body with NBR Horn
- Mounting- Bracket Mount
- Max Rated Output- 15 Watts
- Impulse- 6 Ohm
- Frequency Band- 1000-4000 Hz
- Max Volume- 108 decibels (at 1 meter)
- Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
- Storage Temperature- -20 C to 65 C (-4 F to 149 F)
- Vibration Resistance- 10~55Hz (Cycle: 1 minute) Multi-amplitude, 0.75mm X,Y,Z - 1 hour in each direction
- Applicable Wiring Specification- 2464 UL / 22 AWG, 2P, 450 mm (17.72")
- Protection Rating- IP 60 (Total protection from dust)
- Approvals- RoHS Compliant
Menics Red Bracket Mount Horn Speaker
|
|
|
 |
|
 |
|
