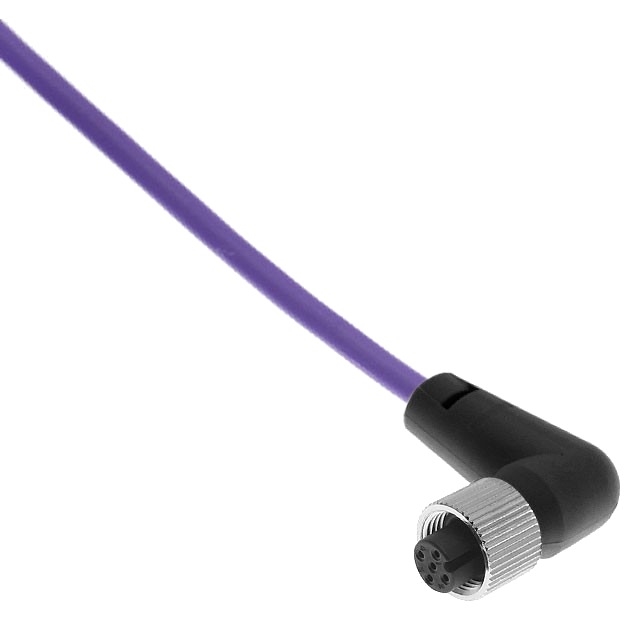

The Mencom PBEC-3FP-1M-R Profibus DP female right angle cordset features a 3 pin insert, 22 gauge wire and 1 meter of cable. The body is black PUR with violet PVC jacketed cable and gold plated copper alloy contacts. The cable is rated at 300V and 4A. Rated IP 67 for protection from exposure to water and dirt. Operating temperature -40 C to 80 C (-40 F to 176 F).
Profibus DP molded cables have plug and play capability for an easier installation with your equipment. They are mostly used for sensors and actuators in automation equipment, working through a main control unit.

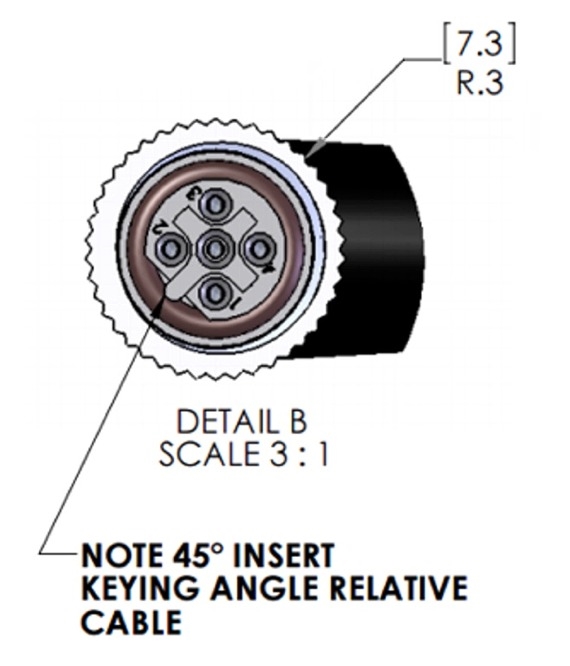

Wiring Code
#1- Not Connected
#2- Green
#3- Not Connected
#4- Red
#5- Shield
Specifications
- Body- Black PUR
- Insert- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- Violet PVC jacket, Profibus DP Cable
- Shielding- Yes
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22
- Pin Count- 3

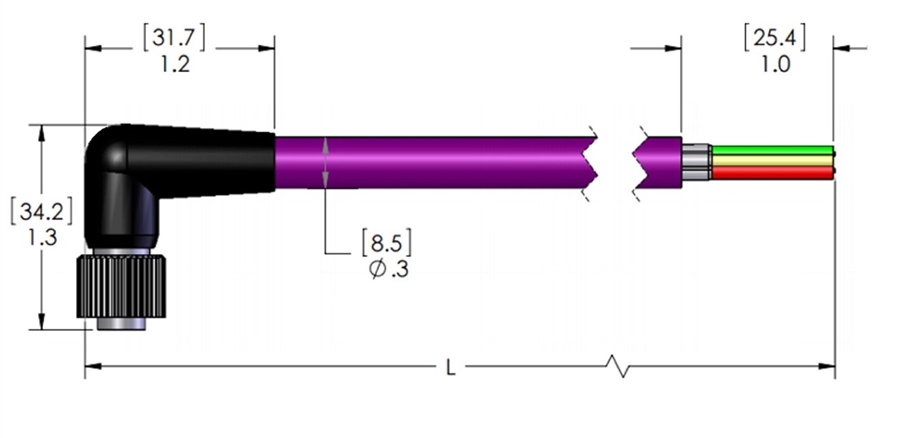

- Cable Length- 1 meter (3.28 ft)
- Cable O.D.- 0.335
- Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
- Orientation Head- Female Right Angle
- Coupling Thread- Female
- Mating Thread / Type Head- M12
- Nut- No
- Approvals- UL & CUL Listed
