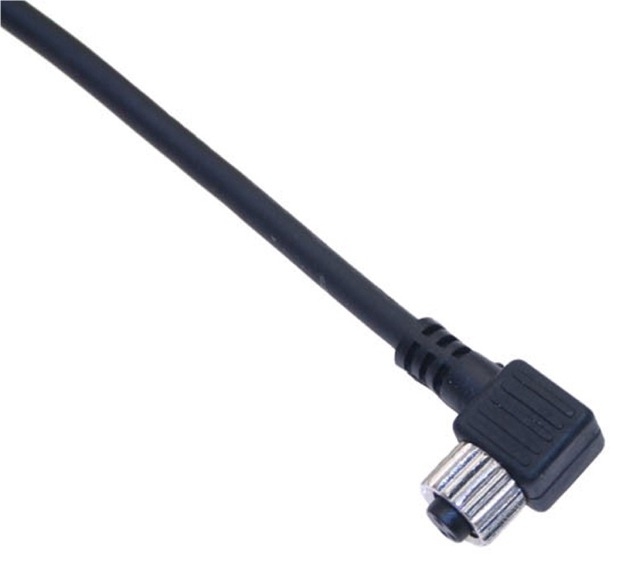

The Mencom NANP-T-3FP-2M-R Pico (M8) female right angle cordset features a 3 pin insert, 24 gauge wire and 2 meters of cable. The body is black PUR with gold plated copper alloy contacts. The molded cable cordset is rated at 60V and 3 A. Rated IP 67 against exposure to moisture and dirt. Operating temperature -40 C to 80 C (-40 F to 176 F). Mencom M8 cordsets have an M8 size mating thread and are typically used for smaller sensors and actuators.
Pin #1 - Brown
Pin #2 - Not Used
Pin #3 - Blue
Pin #4 - Black
Specifications
- Body- Black PUR
- Insulator- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Rated Voltage- 60 V
- Rated Current- 3 Amps
- Wire Gauge- 24
- Pin Count- 3
- Cable Length- 2 M (6.56')
- Cable O.D.- 0.18
- Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
- Orientation Head- Female Right Angle
- Coupling Thread- Female
- Mating Thread / Type Head- M8
Can be compatible with Brad Harrison/Molex 120086-0022
