Mencom MCV-19FP-FW-R-CC M23 Plug, 19 Pole, Female Right Angle, 8A, 5-13mm, Crimp Pin

Mencom M23 Field Wireable Plug - Crimp Pin
Mencom MCV-19FP-FW-R-CC M23 Plug, 19 Pole, Female Right Angle, 8A, 5-13mm, Crimp Pin



Alternative Views:


Our Price: $67.12
MFG P/N: MCV-19FP-FW-R-CC
MFG: Mencom
Weight (lbs): 0.3

Quantity in Stock :17


Availability:
In Stock
Product Code: MCV-19FP-FW-R-CC
Qty:


Description


Mencom M23 connectors provide plug and play solutions for various applications including automation, transport, power generation, shipbuilding and medicine. The Mencom MCV-19FP-FW-R-CC M23 Female Right Angle Field Wireable Plug features a 19 Pin insert, with voltage rating up to 150V and amp rating of 8A. The body is nickel plated brass with gold plated copper alloy contacts. Cable O.D. range 5-13mm. Operating Temperature -40 C to 105 C (-40 F to 221 F). Rated IP67. Connection by means of a crimp pin (sold separately).


Specifications

  • Body- Nickel Plated Brass
  • Gland- Nickel Plated Brass
  • Seal- NBR
  • Insert- PBT
  • Contacts- Gold Plated Copper Alloy

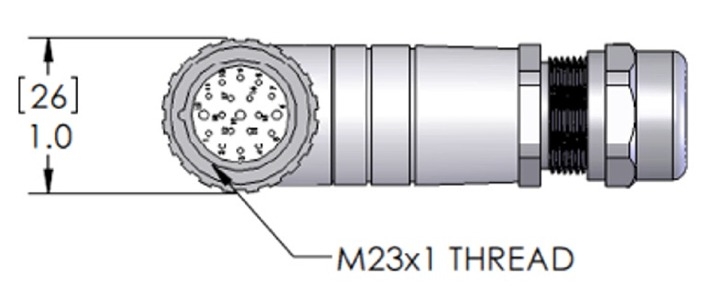

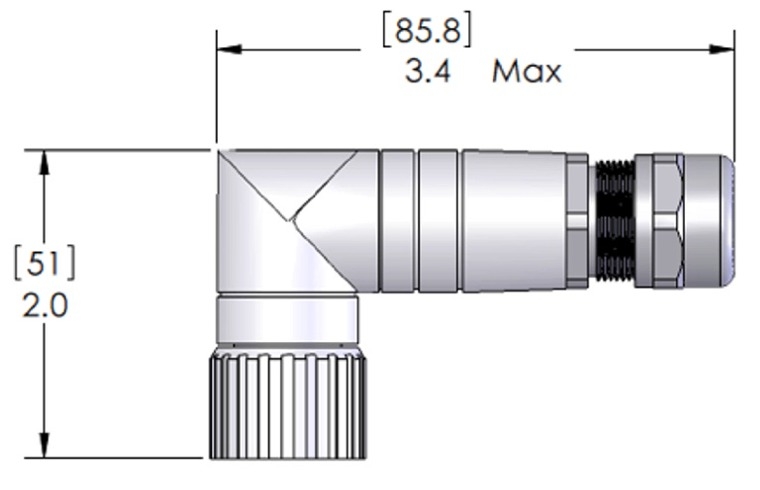

  • Dimensions- 3.4" Length x 2" Height x 1" Width
  • Volts- 150V
  • Amps- 8 Amps
  • Pin Count- 19
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Upper AWG- 18
  • Lower AWG- 24
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female
  • Mating Thread / Type Head- M23
  • Ground Wire- No
  • Nut- No
  • Termination- Crimp Pin

Mencom MCV-19FP-FW-R-CC 19 Pin Right Angle M23 Connector
