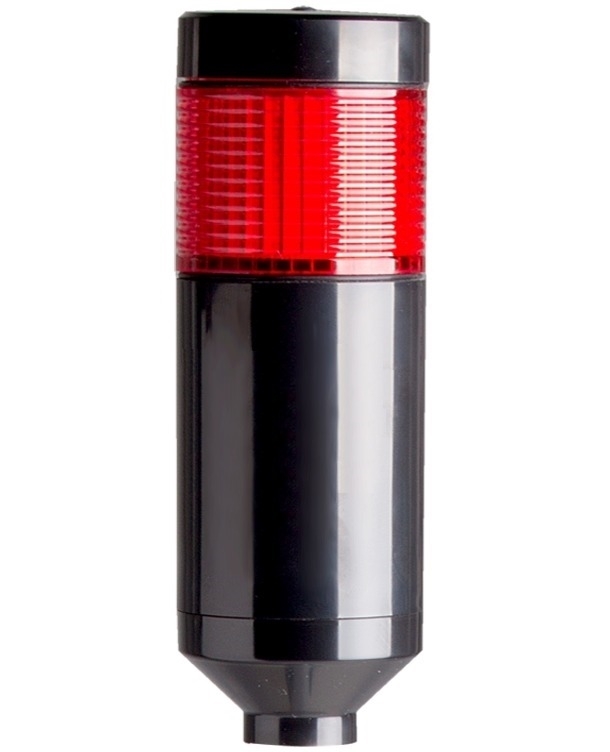

The Menics PTE-T-1FF-R-B 1 stack LED tower light has a 56mm diameter and is rated for 90-240V. It has a red lens with a steady light and has a terminal connection. The PTE series has a modular system, to make it easier to switch out parts if needed. It has a prism cut lens for optimal light distribution. The tower light itself comes preassembled. Perfect for applications in factory automation. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Light Operation- Steady
- Power Supply- 90-240V AC

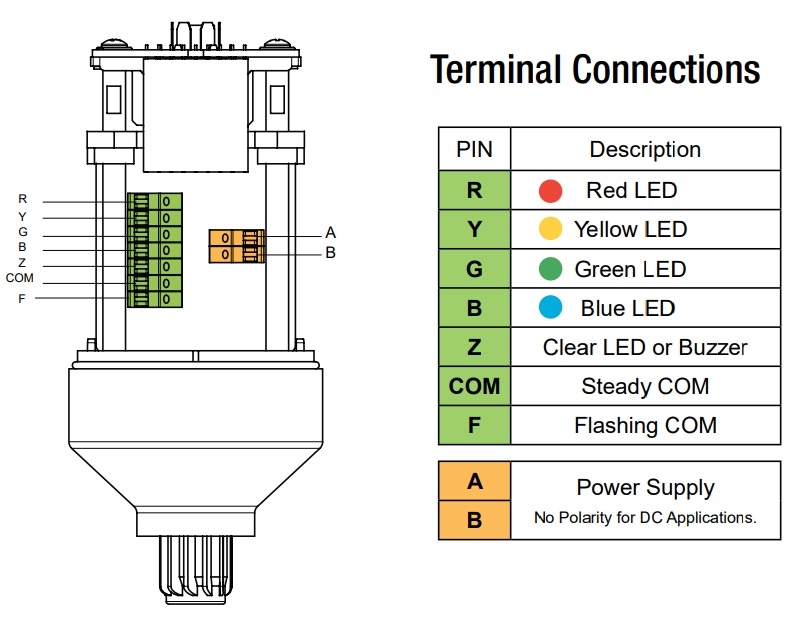

- Mounting/Connection- Pole Mount or Wall Mount / Terminal Connection (see mounting accessories below)
- Lens Color- Red
- Number of LED Tiers- 1 Stack

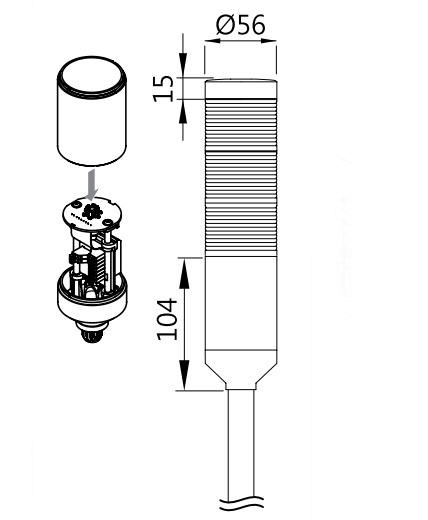

- Dimensions (Tower Light Only)- 159 mm Height x 56 mm Diameter (6.26" x 2.2")
- Current Consumption- 0.033 Amps
- Vibration- 0.75 mm at 10-55Hz
- Ambient Temperature- -15 C to 40 C (5 F to 104 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- 1007 UL / 22 AWG
- IP Protection- IP 65 (Total protection from dust and water jets in any direction)
- Approvals- CE, UL, RoHS
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
