12V AC/DC • Red LED
Menics PME-101-R 1 Tier Red 12V LED Tower Signal Light
1 Stack modular LED signal tower with steady illumination, a 45 mm housing, and prism-cut lens for even light distribution.
✓ Clear Machine Status in a Compact 45 mm Signal Tower
Pre-assembled modular LED tower light for industrial equipment, control panels, and production lines
Overview
The Menics PME-101-R 1 stack LED tower light has a 45mm diameter and is rated for 12V. It has a red lens, with a steady light. Lens is prism cut, to provide an even light distribution. This PME series light has a modular system, making it easier to switch out parts if necessary. The signal light itself comes pre-assembled, with a 25" lead. It can be used in high vibration areas due to the vibration absorbing rubber embedded inside. Rated IP 52.
1 Stack12V AC/DCRed
💡 Built for Industrial Status Indication
Even Visibility: Prism-cut lens spreads light consistently
Modular Design: PME-series components can be serviced or changed more easily.
Vibration Resistance: Internal rubber absorbs vibration in machine-mounted applications.
Key Features
- 1 Stack: compact single-status indication
- Steady LED operation: continuous visual signaling
- Red lens: quick machine-state identification
- 12V AC/DC power: compatible with common control circuits
- 45 mm diameter: compact footprint for equipment and panels
- Pre-assembled construction: supplied with a 25" lead
- IP52 protection: helps resist dust deposits and angled water drops
- CE and RoHS compliant: documented industrial compliance
✅ Why Choose This Tower Light?
The
PME-101-R combines compact dimensions, steady LED signaling, flexible mounting options, and a service-friendly modular design for dependable machine-status indication.
Applications
- Machine tools and automated equipment
- Packaging and assembly lines
- Control panels and operator stations
- Material handling and conveyor systems
- Test stands and production work cells
Mounting Options
- Pole Mount: Pole + Base
- Wall Mount: Pole + Wall Bracket
- Surface Mount: 22 mm Pole (MAP-0022) + Base or Threaded 43 mm Pole (MAP-M043). Threaded pole would be inserted into a pre-drilled hole using lock nuts on either side to tighten in place.
- See our mounting accessories chart (link below description) to see which poles and bases are compatible
⚠️ Installation Note
Note: If you are using a 750 mm or 1000 mm pole, you will need a longer lead length. The lead can be modified yourself, or by the factory upon request
Disconnect power before wiring and confirm the control voltage matches the tower light rating.
Performance Benefits
- Provides immediate visual indication of machine or process status
- Maintains clear visibility through an evenly illuminated prism lens
- Supports multiple mounting configurations with compatible accessories
- Reduces service complexity through modular PME-series construction
Specifications
|
Brand
|
Menics
|
|
Model
|
PME-101-R
|
|
Series
|
PME
|
|
Type
|
Modular LED Tower Signal Light
|
|
LED Color
|
Red
|
|
Number of Tiers
|
1 Stack
|
|
Light Operation
|
Steady
|
|
Buzzer
|
None
|
Electrical
|
Power Supply
|
12V AC/DC
|
|
Current Consumption
|
0.055 Amps
|
|
Lead Length
|
25"
|
|
Recommended Wire Size
|
1007 UL / 22 AWG
|
Physical
|

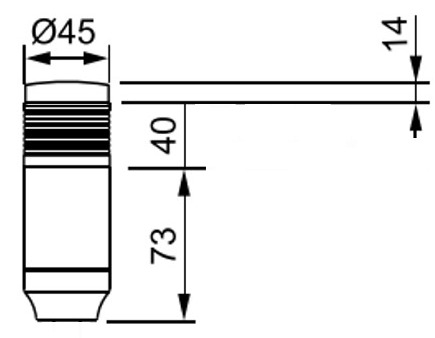

Dimensions
|
127 mm Height x 45 mm Diameter (5" x 1.77")
|
|
Lens Material
|
Polycarbonate Resin
|
|
Housing Material
|
ABS Plastic Resin
|
|
Brightness
|
5 Lumens, 400 mcd
|
|
Vibration Resistance
|
3 mm @10~55Hz
|
Environment & Compliance
|
Ambient Temperature
|
-15 C to 40 C (5 F to 104 F)
|
|
Ambient Humidity
|
45-85% Relative Humidity
|
|
IP Protection
|
IP 52 (Protection from harmful dust deposits and water drops up to 15 degrees from vertical)
|
|
Approvals
|
CE, RoHS
|
What's Included
- PME-101-R pre-assembled tower light
- 25" attached lead
|
|
|
 |
|
 |
