Menics MT5C1BL-R 1 Stack 56mm Tower Light, Red, 110-120V, Steady & Flashing

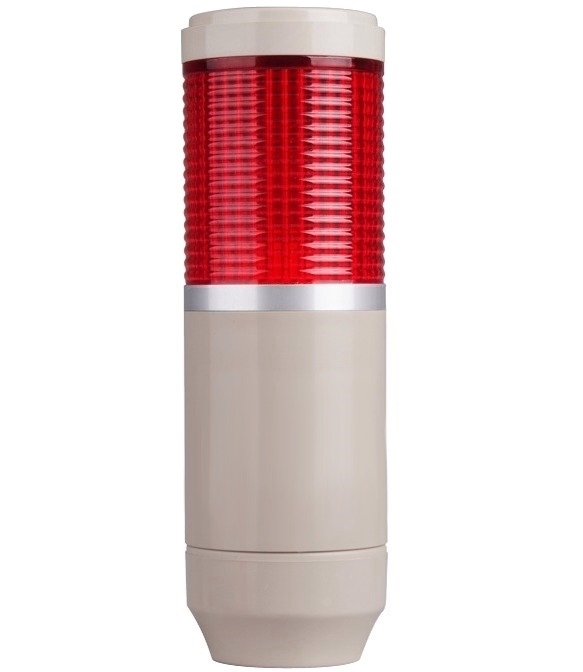

Menics MT5C1BL-R 1 Tier Tower Light, Red
Menics MT5C1BL-R 1 Stack 56mm Tower Light, Red, 110-120V, Steady & Flashing



Alternative Views:


Price: $40.48
MFG P/N: MT5C1BL-R
MFG: Menics
Weight (lbs): 0.7

Quantity in Stock :49


Availability:
In Stock
Product Code: MT5C1BL-R
Qty:

Description


The Menics MT5C1BL-R 1 stack tower light has a 56mm diameter and is rated for 110-120V. It has a red lens, with a steady or flashing light. Lens is prism cut, to provide an even light distribution. The signal light itself comes pre-assembled and pre-wired. Steady or flashing mode is chosen by jumper switch (see diagram). It has integrated vibration-absorbing rubber for use around machines and in other high-vibration environments. Uses incandescent bulb (see optional LED bulb below). Rated IP 54. Note: If you are using a 750 mm or 1000 mm pole, you will need a longer lead length. The lead can be modified yourself, or by the factory upon request. See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

  • Mounting- Pole Mount or Wall Mount (with pole) - see mounting accessories below
  • Light Operation- Steady & Flashing
  • Power Supply- 110-120V AC
  • Current Draw- 0.09 Amps
  • Lead Length- 25"
  • Lens Colors- Red
  • Number of Tiers- 1 Stack

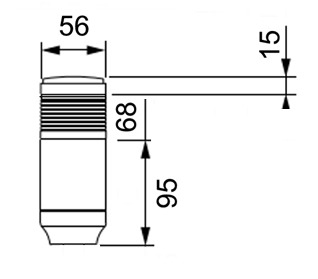

  • Dimensions (Tower Light Only)- 178 mm Height x 56 mm Diameter (7" x 2.2")
  • Flashing Rate- 80 Times Per Minute
  • Vibration- 3 mm @10~55Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Wire Size- 1007 UL / 22 AWG
  • IP Protection- IP 54 (Protected from harmful dust deposits and splashing water from any direction)
  • Rating- NEMA 12, 3R
  • Approvals- RoHS, UL Listed, CE


Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
