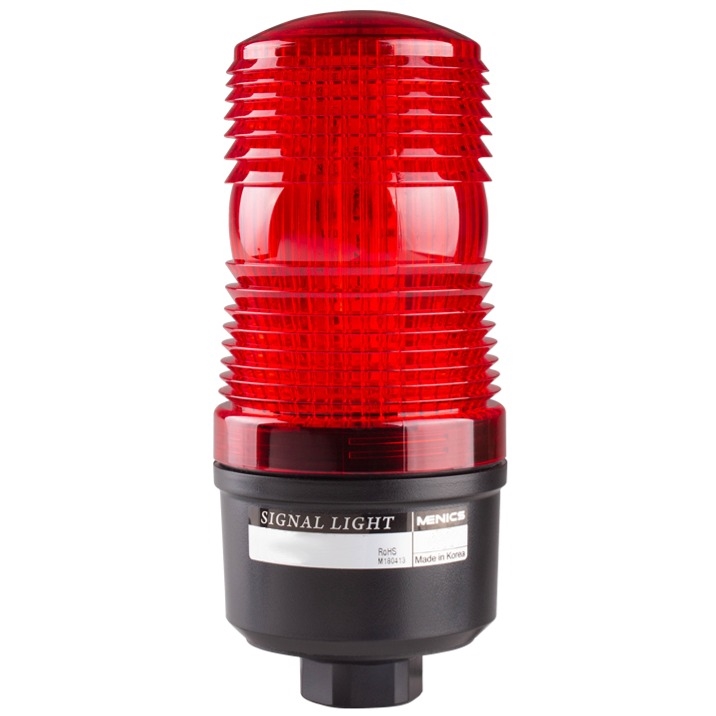

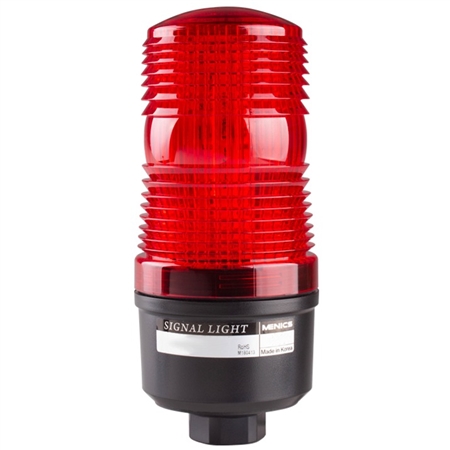

The Menics MS70LT-MB00-R 70mm LED beacon light is 12-24V DC with a red lens and flashing light. Direct mount. Standard flash rate of 75 times per minute. Features high intensity LED & adjustable alarm. Flash rates are selectable with the built in switch. Alarm volume can be set between 50-80 dB. Ideal for material handling and other industrial applications. Rated IP 50.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Direct Mount (see mounting bracket below)
- Power Supply- 12-24V DC
- Lens Color- Red
- Lens Material- Polycarbonate Resin
- Housing Material- ABS Plastic Resin
- Light Function- Flashing w/ Alarm
- Lead Length- 350mm (13.78")
- Current Consumption- 0.16-0.21 Amps
- Alarm Volume- 50-80 decibels (see model without buzzer alarm below)
- Flash Rate- 75 times per minute (Standard), 3 Pattern 130 times per minute (Emergency)
- Brightness- 22.1-38.4 Lumens (1750-3050 mcd)

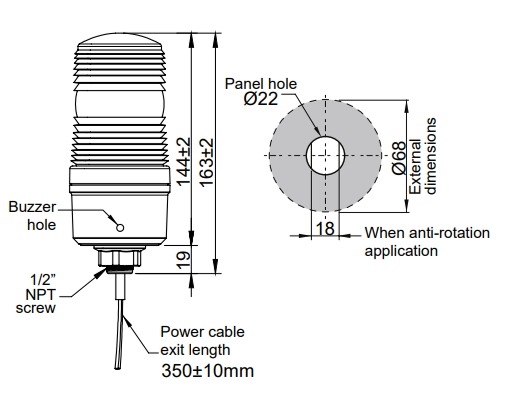

- Dimensions- 163 mm Height x 68 mm Diameter (6.41" x 2.67")
- Connection- UL2464 / 18 AWG, AWM, 2C, 300V
- Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Insulation Resistance- 500V AC 50/60Hz for 1 min
- Vibration- 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
- IP Protection- IP 50 (Protection from harmful dust deposits)
- Approvals- RoHS, CE
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
Menics MS70LT-MB00-R 12-24V Red Direct Mount Beacon Light w/ Buzzer
|
|
|
 |
|
 |
|
