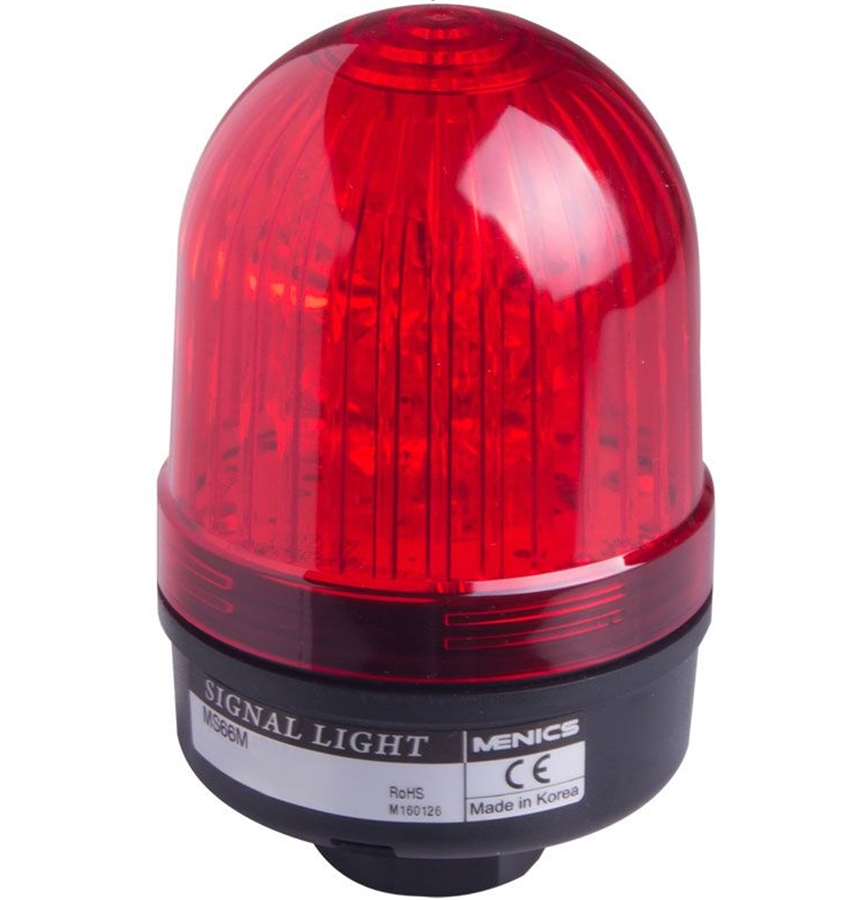

Menics MS66M-FFF-R 66mm LED Beacon Light, 110-220V, Red, Steady/Flash

Menics 66mm LED Beacon Light, 110-220V, Red, Steady/Flash
Menics MS66M-FFF-R 66mm LED Beacon Light, 110-220V, Red, Steady/Flash

Alternative Views:

Price: $55.16
MFG: Menics
Weight (lbs): 0.4

Quantity in Stock :3

In Stock
Product Code: MS66M-FFF-R


The Menics MS66M-FFF-R 66mm LED beacon light is 110-220V AC with a red lens and a steady or flashing light. Direct mount with a lead wire connection. Flash rate of 80 times per minute. Reflectors inside the lens ensure a bright light. Ideal for applications such as conveyors and electrical control panels. Rated IP 65.


  • Mounting- Direct Mount, Plastic M20 Screw (see mounting accessories below)
  • Power Supply- 110-220V AC
  • Lens Color- Red
  • Light Function- Steady & Flashing
  • Lead Length- 800 mm (31.5")
  • Current Consumption- 0.03 Amps
  • Flash Rate- 80 times per minute
  • Buzzer- None (see below for version with buzzer alarm)
  • Dimensions- 119 mm Height x 68 mm Diameter (4.68" x 2.67")
  • Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
  • Storage Temperature- -20 C to 70 C (-4 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Insulation Resistance- 100 MOhm min. @ 500VDC
  • Vibration Resistance- 0.75mm @ 10-55Hz
  • Recommended Wire Size- UL1007 / 22 AWG
  • IP Protection- IP 65 (Total protection from dust and water jets from any direction)
  • Approvals- RoHS, CE

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

Menics MS66M-FFF-R Steady/Flashing 110-220V Red LED Beacon Light
