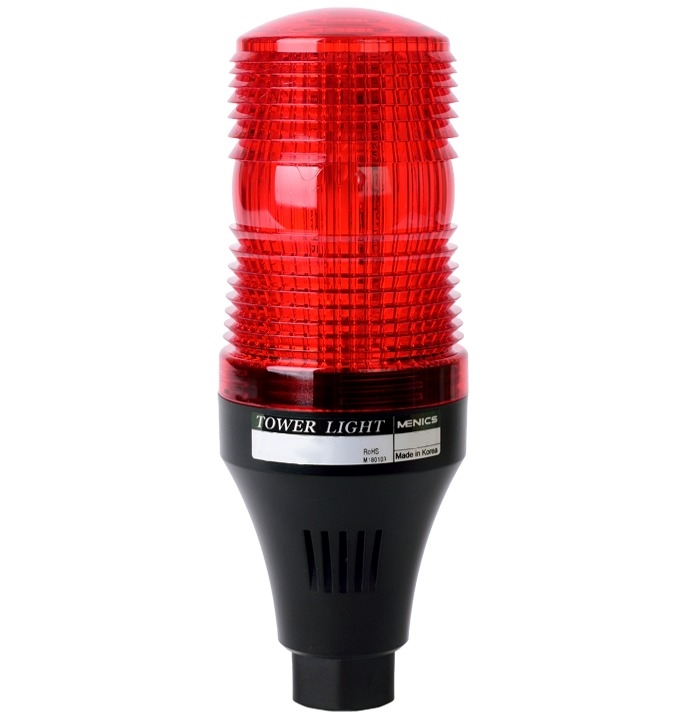

The Menics MS70S-P00-R 70mm Xenon beacon light is 12-48V with a red lens and a flashing light. Pole mount. Standard flash rate of 80 times per minute. Perfect for forklifts, material handling, and other industrial applications. The Xenon bulb snaps in place and is replaceable. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Pole Mount (see accessories below)
- Power Supply- 12-48V DC
- Lens Color- Red
- Lens Material- Polycarbonate Resin
- Housing Material- ABS Plastic Resin
- Light Function- Flashing
- Lead Length- 350mm (13.78")
- Current Consumption- 0.08 - 0.2 Amps
- Flash Rate- 80 times per minute

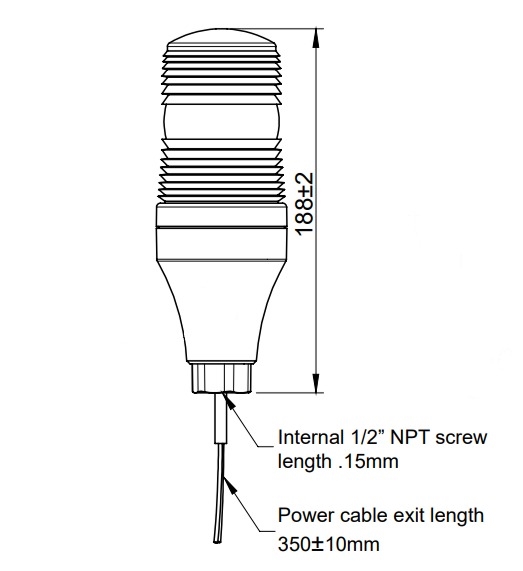

- Dimensions- 188 mm Height x 68 mm Diameter (7.4" x 2.67")
- Connection- UL2464 / 18 AWG, AWM, 2C, 300V
- Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Insulation Resistance- 500V AC 50/60Hz for 1 min
- Vibration- 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
- IP Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
- Approvals- RoHS, CE
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
|
