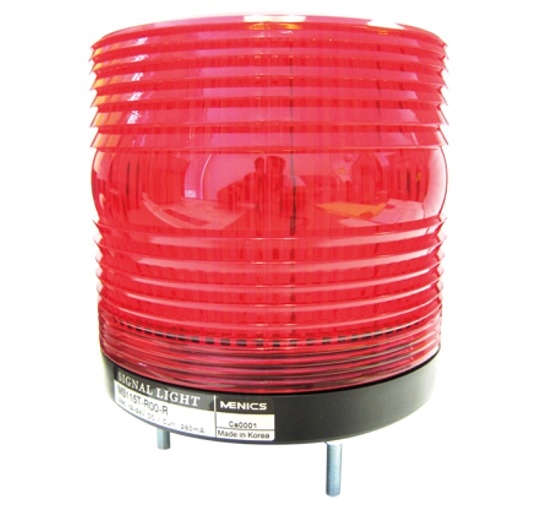

Menics MS115T-FFF-R 115mm LED Beacon Light, 90-240V, Red, Flashing

Menics 115mm LED Beacon Light, 90-240V, Red
Menics MS115T-FFF-R 115mm LED Beacon Light, 90-240V, Red, Flashing

Alternative Views:
Price: $137.21
Note: Ships in 5-7 business days, Priority Shipping Unavailable. If stock is depleted, average factory lead time is 2-4 weeks. Contact us to confirm current ship date
MFG P/N: MS115T-FFF-R
MFG: Menics
Weight (lbs): 0.8



Availability: In Stock
Product Code: MS115T-FFF-R
Qty:

Description

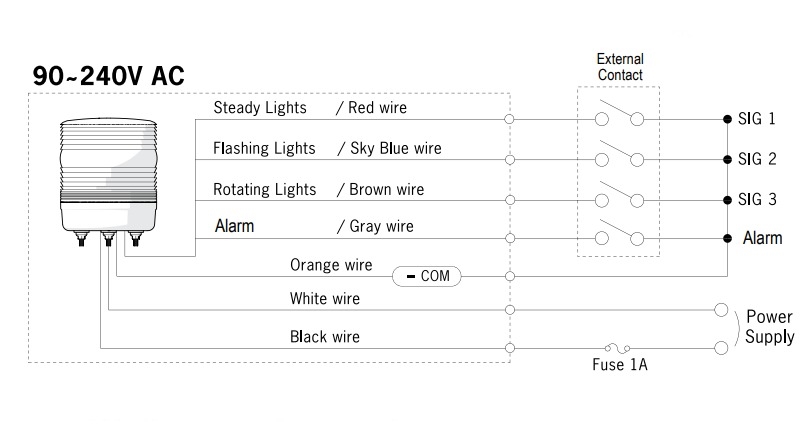

The Menics MS115T-FFF-R 115mm beacon light is 90-240V AC with a red lens, steady/flashing LED light. The prism cut PC plastic lens provides a wide light distribution. Made to be seen from a distance. Ideal for large construction and industrial equipment. Steady or flashing mode depends on how it is wired (see wiring diagram). Two flash rates selected by DIP switch. Rated IP 65. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

  • Light Type- Steady / Flashing
  • Power Supply- 90-240V AC
  • Lens Color- Red
  • Lens Material- Polycarbonate Resin

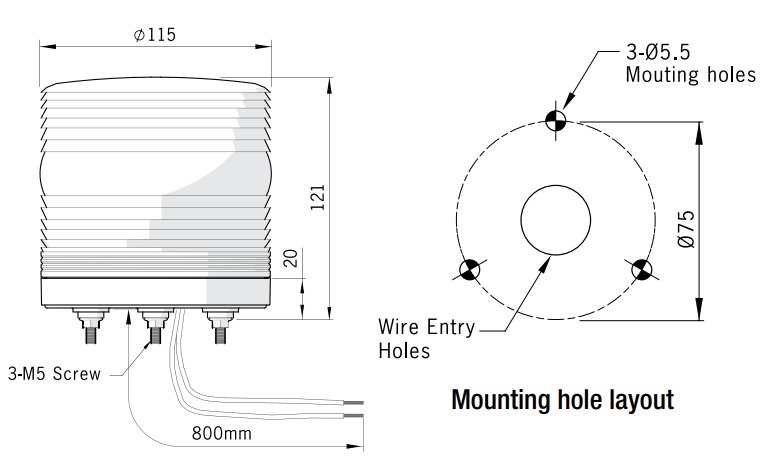

  • Dimensions- 121 mm Height x 115 mm Diameter (4.76" x 4.52")
  • Lead Length- 800mm (31.5")
  • Current Consumption- 0.08 Amps

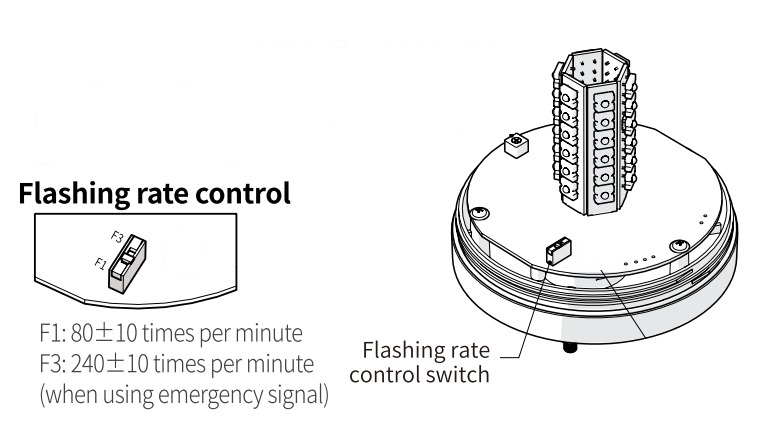

  • Flash Rate- Adjustable (80 or 240 flashes per minute)
  • Vibration- 0.75mm @ 10-55Hz
  • Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
  • Storage Temperature- -20 C to 70 C (-4 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- UL1007 / 22 AWG
  • IP Protection- IP 65 (Total protection from dust and water jets from any direction)
  • Approvals- RoHS, UL

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
