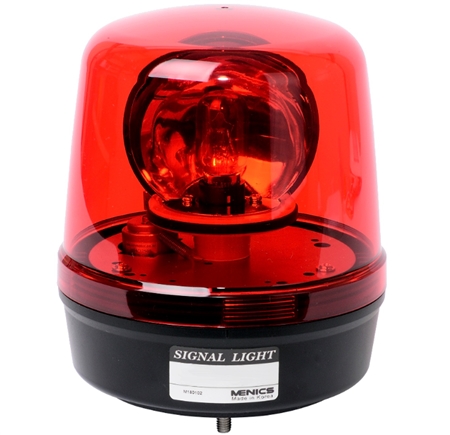

The Menics MS135B-B01-R 135mm beacon warning light is 12V DC with a red lens and incandescent 25W light. Reflector rotation rate of 150 rpm. Has 90 dB intermittent alarm. Lens and body can stand up to the elements. It creates a powerful flash as the reflector directs the light outward. Light is intended to be seen from a distance. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Light Type- Rotating w/ Alarm
- Mounting- Stud mounted or Pole mounted (see mounting accessories below)
- Power Supply- 12V DC
- Lens Color- Red
- Lead Length- 500mm (19.7")
- Dimensions- 181 mm Height x 135 mm Diameter (7.13" x 5.31")
- Brightness- 34 Lumens (2710 mcd)
- Current Consumption- 2.08 Amps
- Rotation Rate- 150 rotations per minute
- Alarm Volume- 90 decibels @ 1 Meter (see below for version without alarm)
- Ambient Temperature- -15 C to 50 C (5 F to 122 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Dielectric Strength- 1 Min @ 1000VAC 50/60Hz
- Insulation Resistance- 100 MOhm or more
- Vibration- 10-55Hz (1 min.cycle) Double amplitude 0.75mm X, Y, Z
- Recommended Wire Size- UL2464 / 22 AWG
- Bulb Life Expectancy- 1000 hrs
- IP Protection- IP 65 (Total protection from dust and water jets from any direction)
- Approvals- RoHS
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
|
