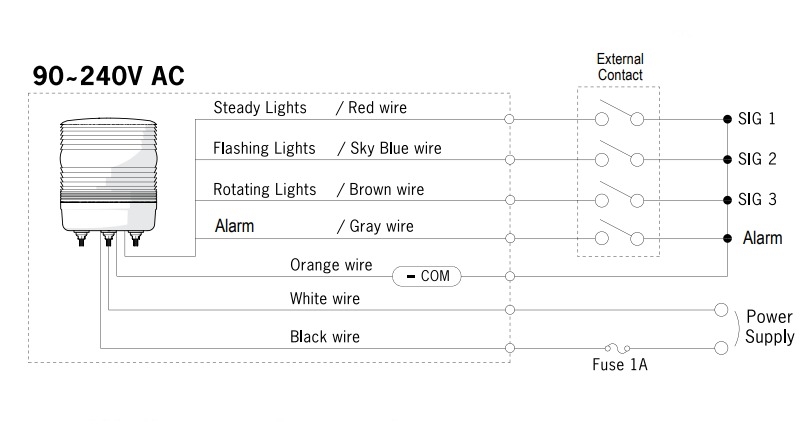

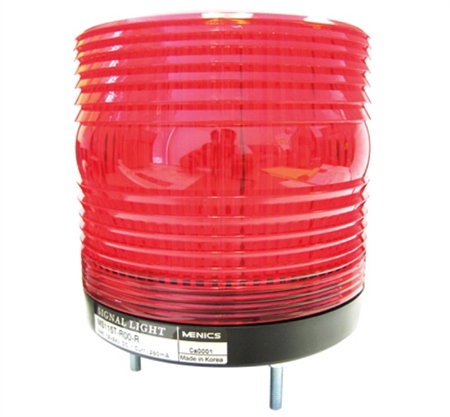

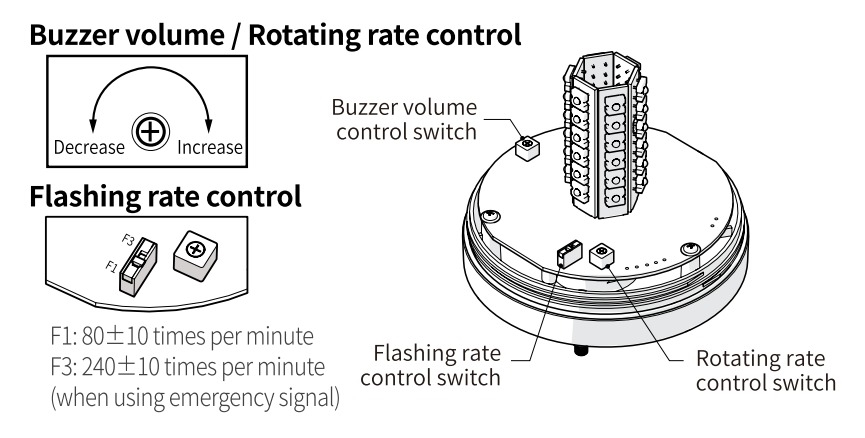

The Menics MS115T-BFF-R 115mm beacon light is 90-240V AC with a red lens, steady/flashing/rotating LED light, and alarm buzzer. The prism cut PC plastic lens provides a wide light distribution. Made to be seen from a distance. Ideal for large construction and industrial equipment. Steady or flashing mode depends on how it is wired (see wiring diagram). Two flash rates selected by DIP switch. Rotation rate and volume adjusted using Phillips head screwdriver. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Light Type- Steady / Flashing / Rotating w/ Buzzer
- Power Supply- 90-240V AC
- Lens Color- Red
- Lens Material- Polycarbonate Resin

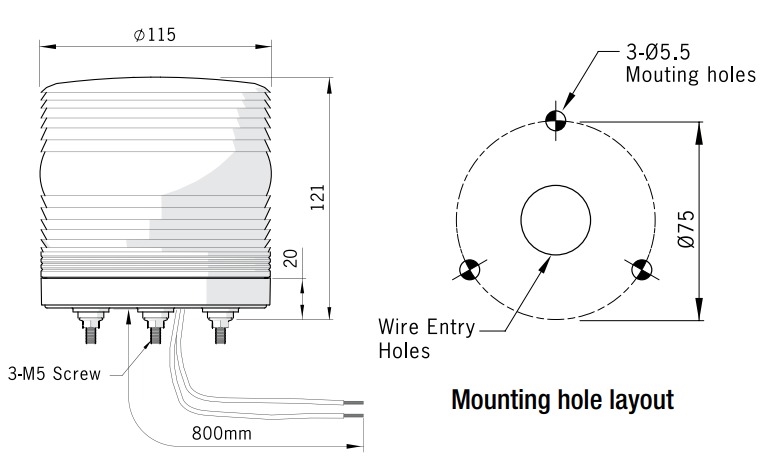

- Dimensions- 121 mm Height x 115 mm Diameter (4.76" x 4.52")
- Lead Length- 800mm (31.5")
- Current Consumption- 0.23 Amps
- Flash Rate- Adjustable (80 or 240 flashes per minute)
- Rotation Rate- Clockwise 60-300 rpm
- Alarm Buzzer- Adjustable 10-100dB
- Vibration- 0.75mm @ 10-55Hz
- Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- UL1007 / 22 AWG
- IP Protection- IP 65 (Total protection from dust and water jets from any direction)
- Approvals- RoHS, UL
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
|
