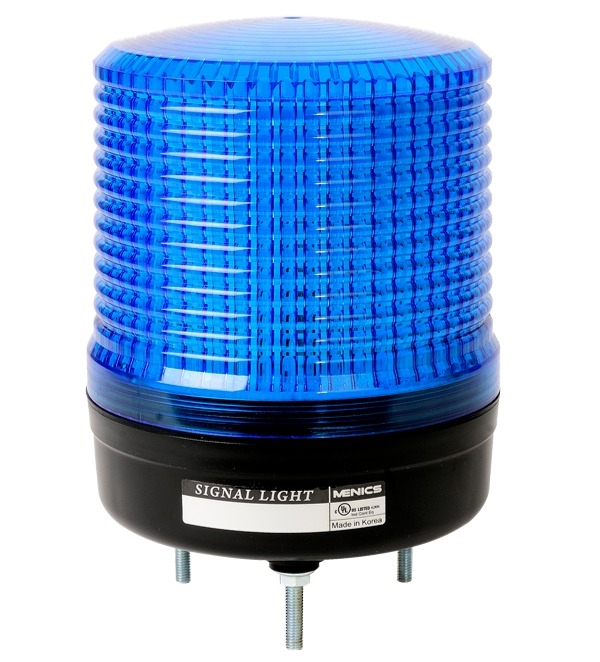

The Menics MS115L-FFF-B 115mm beacon light is 90-240V AC with a blue lens and steady & flashing LED. It has high intensity light with a 30,000 hr lifespan. Steady or flashing mode is selectable. Withstands exposure to shock and vibration. The light is triple reflected, reducing glare and stabilizing light distribution. The LED allows for a longer lifespan and less heat generation even when in use for extended periods. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Light Type- LED Steady/Flashing
- Mounting- Stud mounted or Pole mounted (see mounting accessories below)
- Power Supply- 90-240V AC
- Lens Color- Blue
- Lens Material- Polycarbonate Resin
- Lead Length- 800mm (31.5")

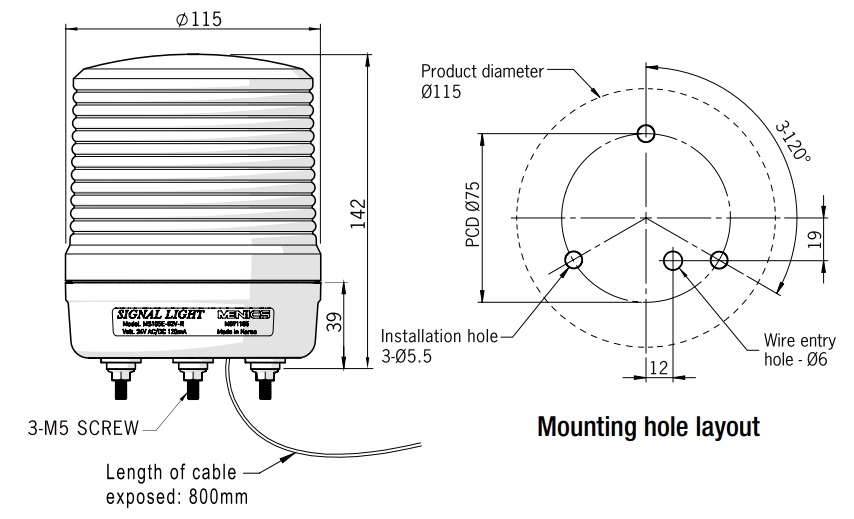

- Dimensions- 142 mm Height x 115 mm Diameter (5.6" x 4.52")
- Current Consumption- 0.03-0.07 Amps
- Brightness- 16 Lumens, 1270 mcd
- Flash Rate- 80 times/minute
- Buzzer Alarm- No (see below for model with alarm)
- Vibration- 0.75mm @ 10-55Hz
- Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- PUR Ø5 / PVC Ø1.25 2P 0.3SQ, 300mm
- IP Protection- IP 65 (Total protection from dust and water jets from any direction)
- Approvals- RoHS, UL
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
