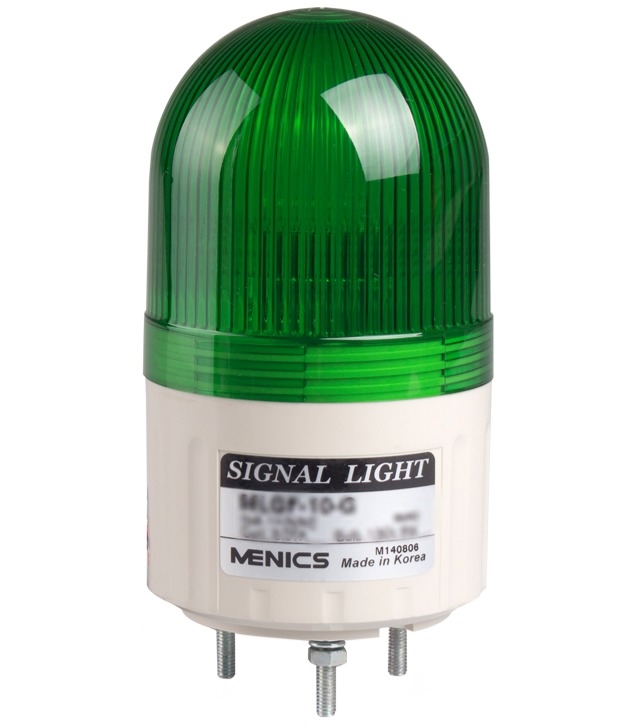

The Menics MLGS-10-G 66mm warning signal beacon light is 110V AC with a prism cut green lens and a Xenon light. Stud mounted. Strobe light flashing at 80 times per minute. Excellent visibility of light at long distances and at night. Used for a wide range of applications such as in small machines, construction, and road safety. Rated IP 42.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Stud Mounting (see mounting accessories below)
- Light & Bulb Type- Strobe, Xenon
- Power Supply- 110V AC
- Lens Color- Green
- Lens Material- Polycarbonate Resin
- Buzzer- None
- Flashing Rate- 80 times per minute (+/- 10)
- Current Draw- 0.22 Amps, 6 W

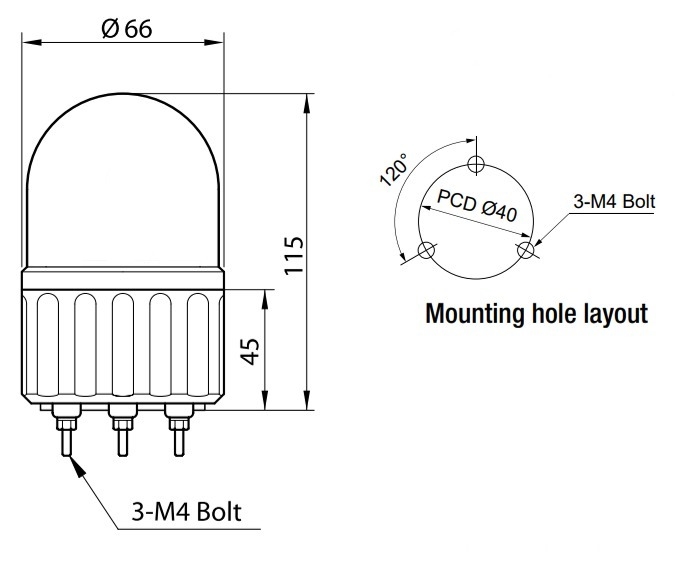

- Dimensions- 115 mm Height x 66 mm Diameter (4.52" x 2.6")
- Ambient Temperature- -15 C to 40 C (5 F to 104 F)
- Storage Temperature- -25 C to 70 C (-13 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- VSF / 0.75mm2 (Input cable spec)
- IP Protection- IP 42 (Protected against solid objects over 1.0 mm and falling drops of water, up to 15 degrees from vertical)
- Approvals- RoHS, CE
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
|
