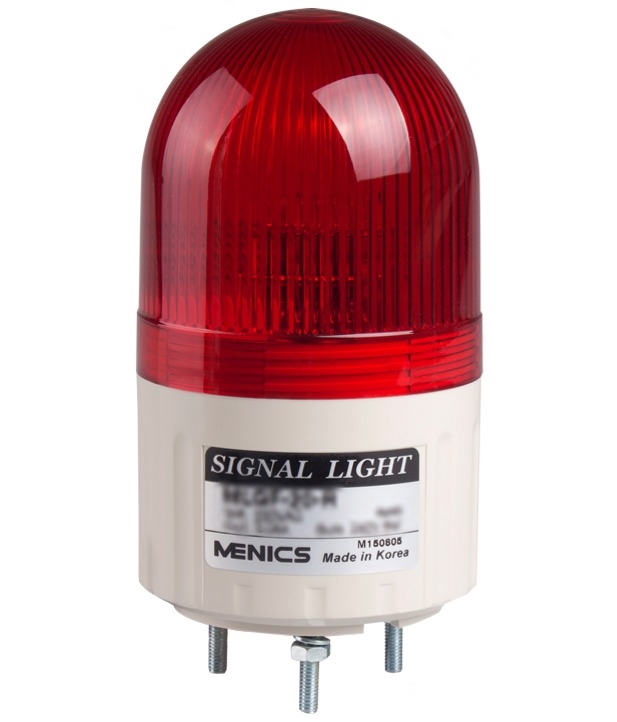

The Menics MLGF-10-R 66mm warning signal beacon light is 110V AC with a prism cut red lens and an incandescent light. Stud mounted. Steady or flashing at 80 times per minute. Steady or flashing mode is based on how the light is wired (see wiring diagram). Excellent visibility of light at long distances and at night. Used for a wide range of applications such as in small machines, construction, and road safety. Rated IP 42.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Stud Mounting (see mounting accessories below)
- Light & Bulb Type- Steady / Flashing Incandescent
- Power Supply- 110V AC
- Lens Color- Red
- Lens Material- Polycarbonate Resin
- Buzzer- None
- Flashing Rate- 80 times per minute (+/- 10)
- Current Draw- 0.07 Amps, 8W
- Brightness- 5 Lumens, 400 mcd

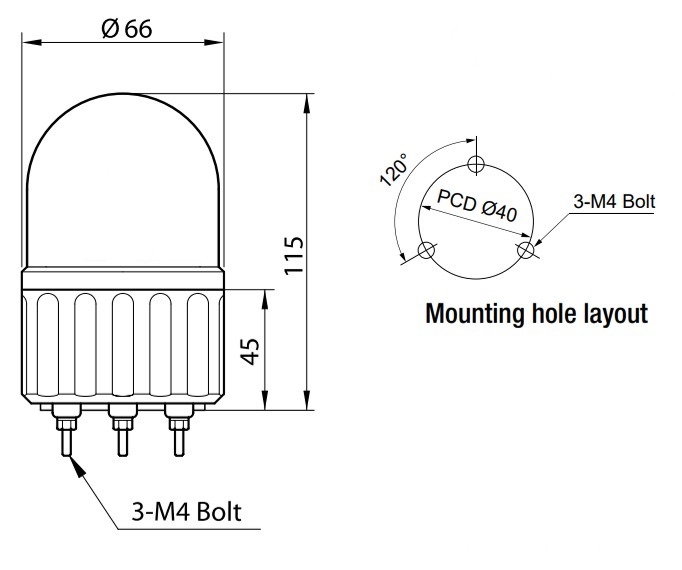

- Dimensions- 115 mm Height x 66 mm Diameter (4.52" x 2.6")
- Ambient Temperature- -15 C to 40 C (5 F to 104 F)
- Storage Temperature- -25 C to 70 C (-13 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- VSF / 0.75mm2 (Input cable spec)
- IP Protection- IP 42 (Protected against solid objects over 1.0 mm and falling drops of water, up to 15 degrees from vertical)
- Approvals- RoHS, CE
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
|
|
|
|
|
|
|
