Kacon MLD-100ESE Rotary Switch Disconnector, 100A, Extended Shaft

Alternative Views:

Price: $200.98

Note: Delivery: 2-5 Business Days
MFG P/N: MLD-100ESE
MFG: Kacon
Weight (lbs): 2

Quantity in Stock :7

Availability: In Stock
Product Code: MLD-100ESE

Qty:

Description

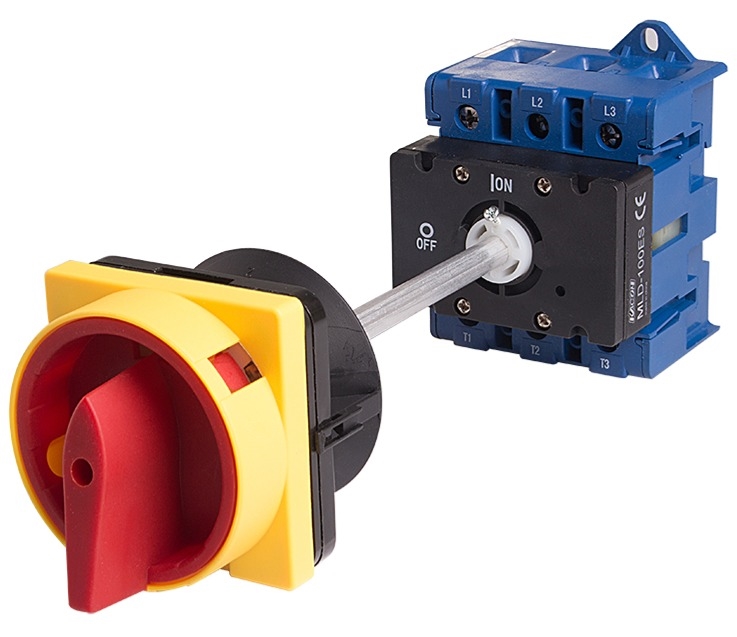

The Kacon MLD-100ESE rotary switch disconnector has a round head and extended shaft. Rated for 100 A and 240-440V. Rated IP 65.

Specifications

Switch Type- Emergency Type Rotary Switch Disconnector
Switch Shape- Round

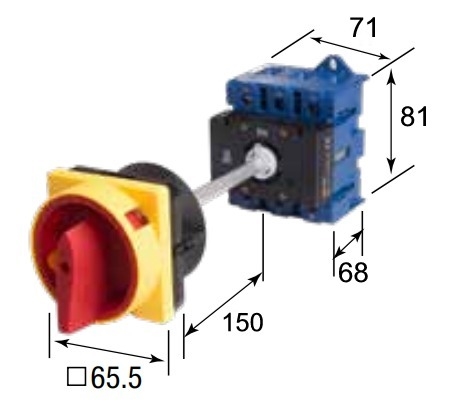

Overall Dimensions- 65.5 mm Width x 65.5 mm Height x 218 mm Length (2.58" x 2.58" x 8.58")
Rated Current- 100 Amps Max, 70 Amps (AC-23A), 57 Amps (AC-3)
Rated Insulation Voltage- 690V
Rated Voltage- 240-440V
Contact Capacity- 22-37 Kilowatts (AC-23A), 15-30 (AC-3)
Motor Load- 25-50 Horsepower, 240-440V
LCW/S- 840 Amps
Wire Size- 2-60 mm2
Tightening Torque- 2.5(25.49kgf·cm)
Working Temperature- -25 C to 70 C (-13 F to 158 F)
Ingress Protection- IP 65 (total protection from dust and low pressure water jets from any direction)
Approvals- CE

MLD-100ESE 100 Amp Rotary Disconnect Switch
