Kacon MLD-032PE Rotary Switch Disconnector, 32A, Panel Type

Alternative Views:

Price: $56.53

Note: Delivery: 2-5 Business Days
MFG P/N: MLD-032PE
MFG: Kacon
Weight (lbs): 1

Quantity in Stock :3

Availability: In Stock
Product Code: MLD-032PE

Qty:

Description

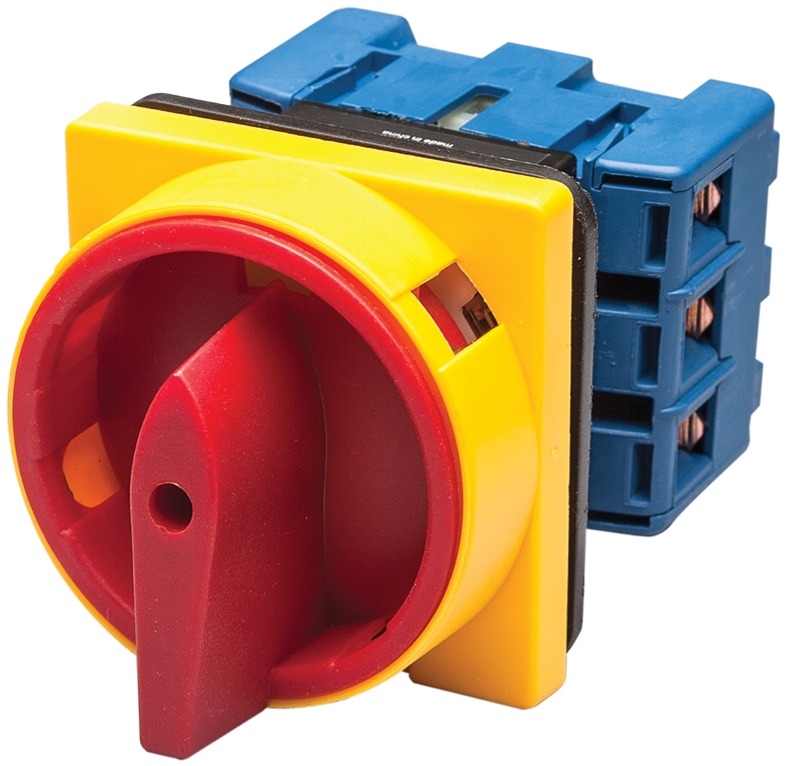

The Kacon MLD-032PE panel mount rotary switch disconnector has a round head. Rated for 32 A and 240-440V. Rated IP 65.

Specifications

Switch Type- Emergency Type Rotary Switch Disconnector
Switch Shape- Round

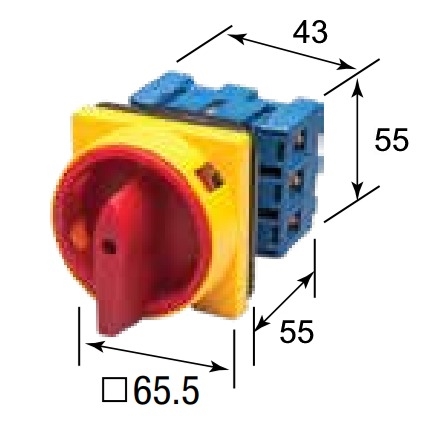

Overall Dimensions- 65.5 mm Width x 65.5 mm Height x 55 mm Length (2.58" x 2.58" x 2.17")
Rated Current- 32 Amps Max, 22 Amps (AC-23A), 15 Amps (AC-3)
Rated Insulation Voltage- 690V
Rated Voltage- 240-440V
Contact Capacity- 5.5-11 Kilowatts (AC-23A), 4-7.5 (AC-3)
Motor Load- 5-10 Horsepower, 240-440V
LCW/S- 264 Amps
Wire Size- 2-14 mm2
Tightening Torque- 0.8(8.16kgf·cm)
Working Temperature- -25 C to 70 C (-13 F to 158 F)
Ingress Protection- IP 65 (total protection from dust and low pressure water jets from any direction)
Approvals- CE

MLD-032PE 32 Amp Panel Mount Rotary Disconnect Switch
