Kacon MLD-080PE Rotary Switch Disconnector, 80A, Panel Type

Kacon Rotary Switch Disconnector, 80A, Panel Type
Kacon MLD-080PE Rotary Switch Disconnector, 80A, Panel Type

Alternative Views:
Price: $127.14
Note: Delivery: 2-5 Business Days
MFG P/N: MLD-080PE
MFG: Kacon
Weight (lbs): 1

Quantity in Stock :3


Availability: In Stock
Product Code: MLD-080PE
Qty:

Description

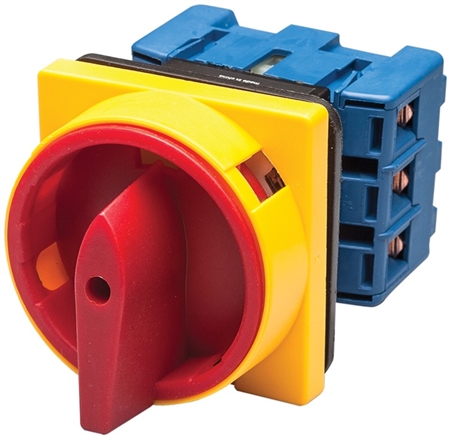

The Kacon MLD-080PE panel mount rotary switch disconnector has a round head. Rated for 80 A and 240-440V. Rated IP 65.

Specifications

  • Switch Type- Emergency Type Rotary Switch Disconnector
  • Switch Shape- Round

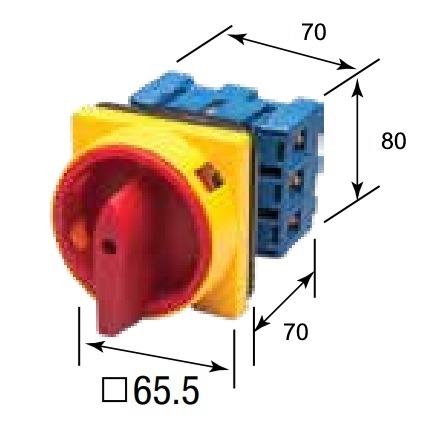

  • Overall Dimensions- 65.5 mm Width x 65.5 mm Height x 70 mm Length (2.58" x 2.58" x 2.76")
  • Rated Current- 80 Amps Max, 57 Amps (AC-23A), 43 Amps (AC-3)
  • Rated Insulation Voltage- 690V
  • Rated Voltage- 240-440V
  • Contact Capacity- 15-30 Kilowatts (AC-23A), 9-22 (AC-3)
  • Motor Load- 20-40 Horsepower, 240-440V
  • LCW/S- 684 Amps
  • Wire Size- 2-38 mm2
  • Tightening Torque- 2.5(25.49kgf·cm)
  • Working Temperature- -25 C to 70 C (-13 F to 158 F)
  • Ingress Protection- IP 65 (total protection from dust and low pressure water jets from any direction)
  • Approvals- CE

MLD-080PE Panel Mount 80 Amp Rotary Disconnect Switch
