Overview
The
Kacon KXM-312 light-duty limit switch combines a cross roller plunger actuator with a 1NO/1NC, SPDT snap-action contact arrangement for dependable machine position detection. Its plastic cover over an aluminum housing supports use on compact industrial automation equipment.Cross Roller Plunger1NO/1NC, SPDT snap-actionIP65
The cross roller plunger supports lateral cam travel across the actuator, making it useful where the target moves across the switch rather than directly into it. The switch can provide endpoint confirmation, equipment interlocking, and position feedback when installed within its specified electrical, mechanical, and environmental ratings.
⚙️ Reliable Industrial Position Sensing
Actuation: Cross Roller Plunger for model-specific machine contact.

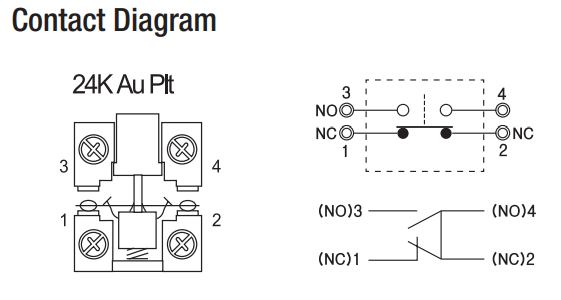

Switching: 1NO/1NC, SPDT snap-action contacts rated 6 A at 250 VAC (resistive load).
Service Life: 300,000 electrical operations; 10,000,000 mechanical operations.
Key Features
- Compact dimensions: 28 mm W × 112 mm L × 25 mm D (1.1 in. × 4.41 in. × 0.98 in.)
- IP65 enclosure protection: dust-tight and protected against low-pressure water jets
- Plastic cover over an aluminum housing: designed for industrial machine environments
- Silver alloy: dependable switching contact construction
- -20°C to 60°C (-4°F to 140°F): operating temperature range
- CE, CCC
✅ Why Choose the KXM-312?
The KXM-312 pairs a
cross roller plunger actuator with IP65 protection and a 1NO/1NC, SPDT snap-action contact arrangement. It is a practical choice when the application calls for light-duty mechanical position detection with clearly defined electrical and environmental ratings.
Applications
Use the Kacon KXM-312 for position, endpoint, and interlock sensing in applications such as:
- Packaging machine cam detection
- Cross-travel slide sensing
- Small conveyor position feedback
- Assembly fixture confirmation
- Light-duty machine interlocks
⚠️ Important Installation Information
Environmental protection: IP65 is rated for dust-tight and protected against low-pressure water jets.
Mechanical setup: Avoid excessive actuator travel or impact beyond the specified installation requirements.
Performance Benefits
- Repeatable machine position and endpoint feedback
- Separate normally open and normally closed contact functions
- Long mechanical service life for repeated actuation
- Model-specific enclosure protection for industrial environments
🔎 Selection Reminder
Select the actuator, electrical rating, dimensions, and IP protection required by the application.
