The Kacon KXM-702 Light Duty Limit Switch features a plastic cover over an aluminum housing and a roller lever actuator for precise mechanical operation. It has a 1NO/1NC snap action contact block, ensuring reliable switching performance. Designed for industrial automation, packaging machinery, material handling systems, and construction equipment, the KXM-702 provides accurate position detection and consistent electrical control. Its compact design and construction make it ideal for light duty mechanical limit applications where precision and durability are critical.

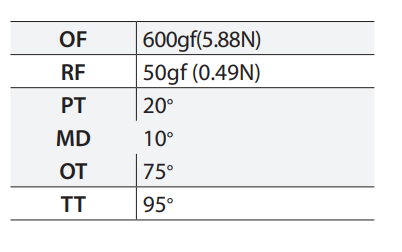

Specifications
- Actuator Type: Roller Lever
- Indicator Lamp: None
- Dimensions: 28mm Width x 96.5mm x 41.2mm Depth (1.1" x 3.8" x 1.62")
- Contact Arrangement: 1NO/1NC, SPDT
- Contact Material: Silver Alloy
- Insulation Resistance: 100MOhm at 500V DC
- Contact Resistance: Max. 25mOhm
- Rated Current: 6 Amp 250VAC - Resistance Load
- Operating Temperature: -20 C to 60 C (-4 F to 140 F)
- Storage Temperature: -30 C to 80 C (-22 F to 176 F)
- Ambient Humidity: 90% Relative Humidity Max.
- Operation Frequency: 30/min (Electrical), 120/min (Mechanical)
- Dielectric Strength: 1,500VAC 50/60Hz 1min
- Lifespan: 300,000 (Electrical), 10,000,000 (Mechanical)
- IP Rating: IP65 (Total protection from dust and low pressure water jets from any direction)
- Approvals: CE, CCC
|
|
|
 |
|
 |
|
