The ILME MNDS-16IO25 kit is size 77.27 with 16 pole male & female screw terminal inserts, a metal side entry hood and a metal double lever base. The hood thread is size M25. Insert dimensions 77.5 x 27 mm. Rated IP 66. The MNDS-16IO25 features a clamping force that is constant due to the stainless steel locking system. It has a life expectancy of over 500 cycles. These connector kits can be used in many different types of applications, including automation, food processing, robotics, transportation, injection molding and material handling.

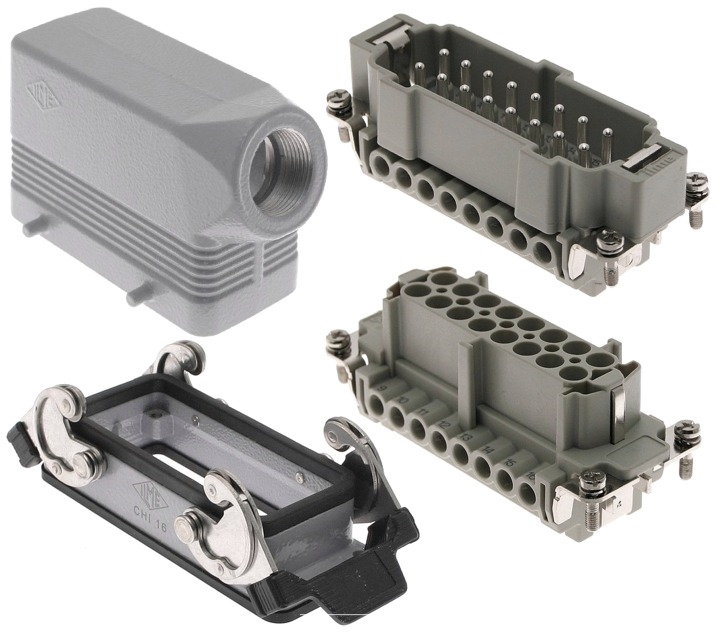

Included Components
Male Insert:

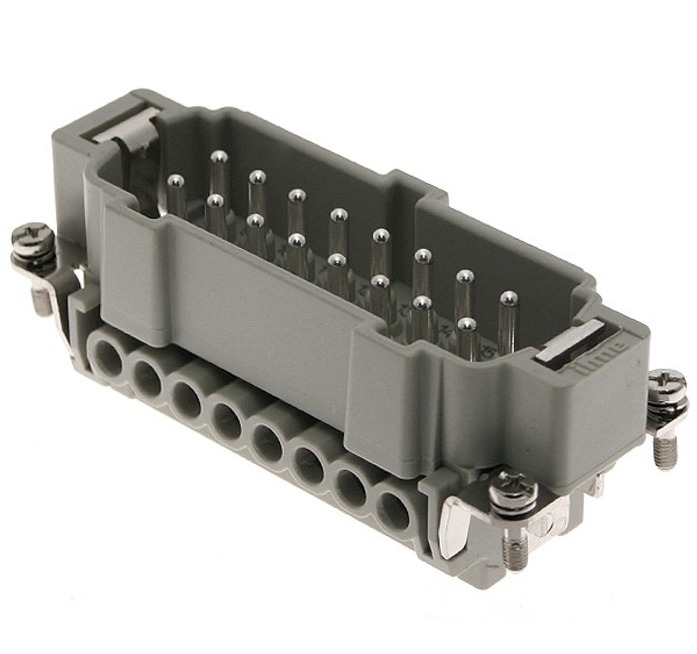

CNEM-16T

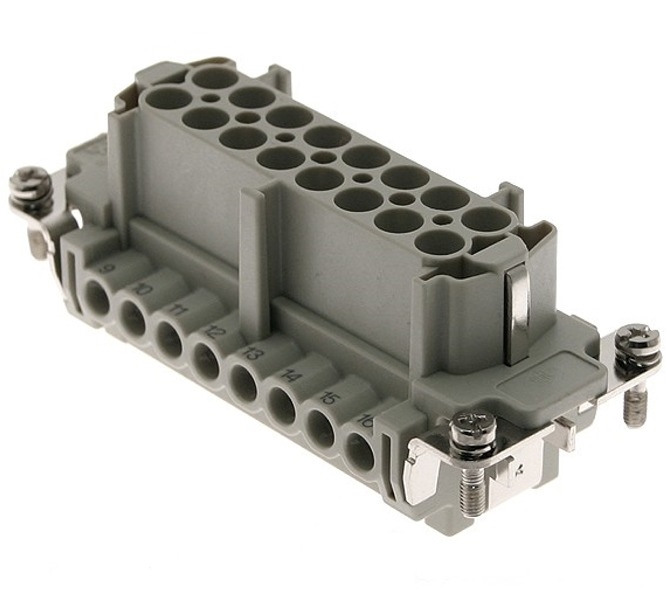

Female Insert: CNEF-16T

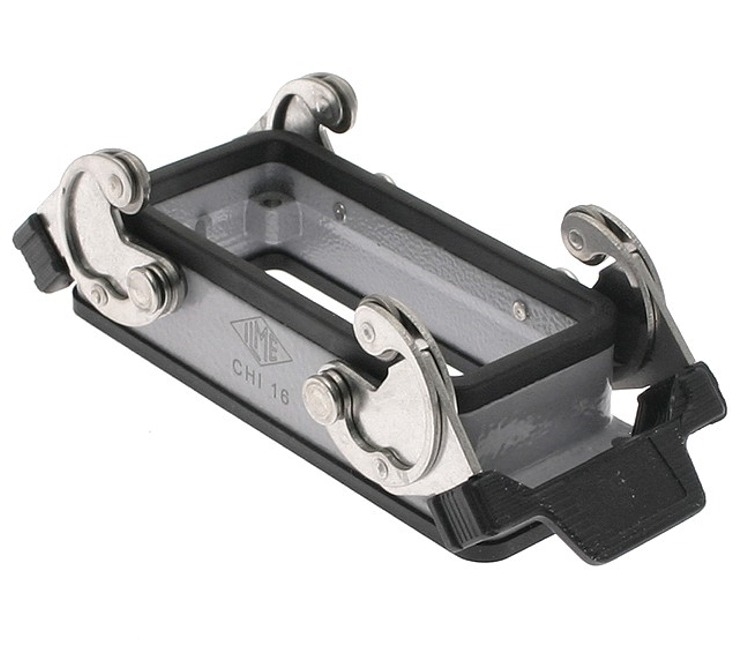

Base: CHI-16
Hood: MHO-16.25
Specifications
- Pin Count- 16
- ILME Series- KIT
- Housing Type- Standard
- Insert Dimension- 77.27
- Enclosure Dimension- 77.27
- Termination- Screw
- Enclosure Type- Double Lever
- Mounting Style- Panel Mount
- Hood Entry- Side
- Hood Thread- M25
- Pegs- 4 Pegs
- Gasket- Yes
- Number of Entries- 1
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Insert Dimensions- 77.5 x 27 mm (3.05" x 1.06")
- Approvals- UL, CUL
ILME 77.27 16 Pin Insert Kit MNDS-16IO25
|
|
|
 |
|
 |
|
