ILME MNLS-10IO20 Kit, 10 Pole Inserts, Screw Termination, Single Lever Base, Side Entry M20 Hood

MNLS-10IO20
ILME Kit, 10 Pole, Screw, Single Lever, Side Entry, M20 - MNLS-10IO20



Alternative Views:


Price: $75.72
Note: Please call or email [email protected] for alternatives
MFG P/N: MNLS-10IO20
MFG: ILME
Weight (lbs): 1

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: MNLS-10IO20
Qty:


Description

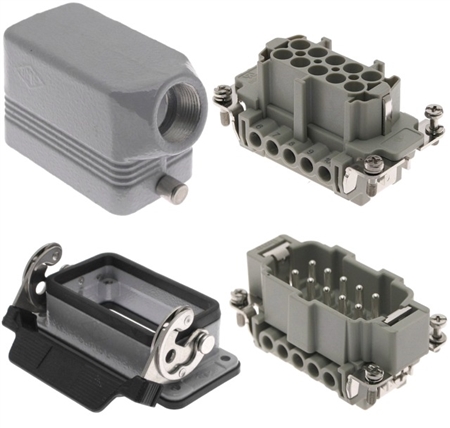

The ILME MNLS-10IO20 kit is size 57.27 with 10 pole male & female screw terminal inserts, a metal side entry hood and a metal single lever base. The hood thread is size M20. Insert dimensions 57 x 27 mm. Rated IP 66. The MNLS-10IO20 features a clamping force that is constant due to the stainless steel locking system. It has a life expectancy of over 500 cycles. These connector kits can be used in many different types of applications, including automation, food processing, robotics, transportation, injection molding and material handling.

Included Components

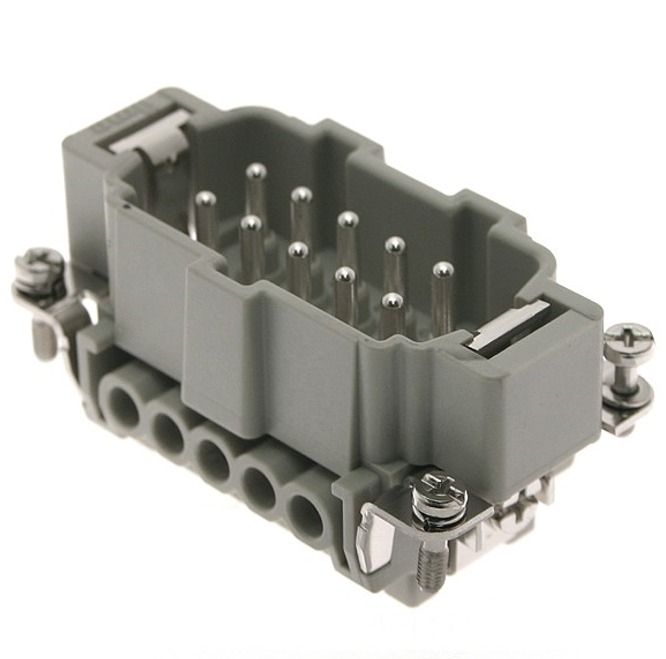

Male Insert: CNEM-10T

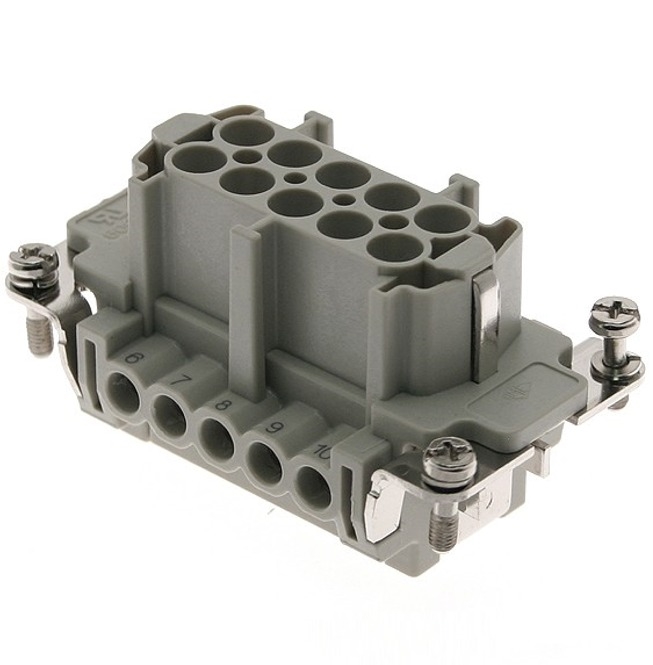

Female Insert: CNEF-10T
Base: CHI-10L

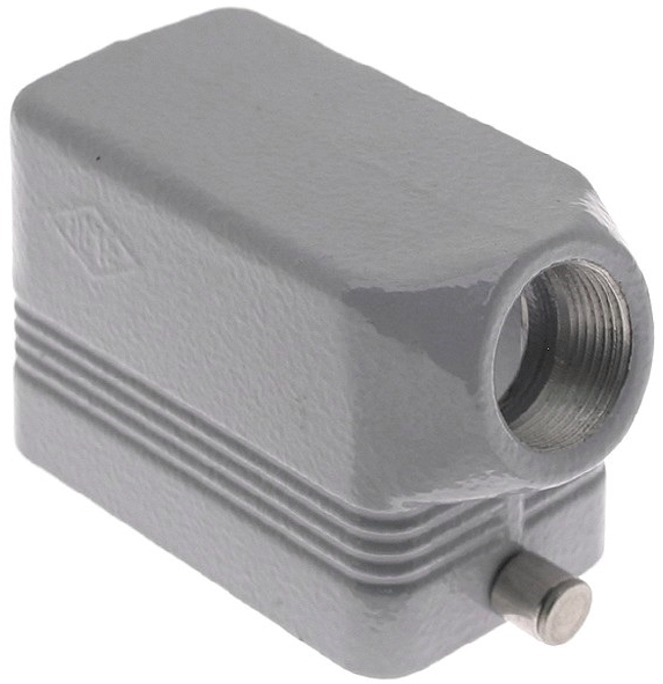

Hood: MHO-10L20

Specifications

  • Pin Count- 10
  • ILME Series- KIT
  • Housing Type- Standard
  • Insert Dimension- 57.27
  • Enclosure Dimension- 57.27
  • Termination- Screw
  • Enclosure Type- Single Lever
  • Mounting Style- Panel Mount
  • Hood Entry- Side
  • Hood Thread- M20
  • Pegs- 2 Pegs
  • Gasket- Yes
  • Number of Entries- 1
  • Temperature Range- -40 C to +125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Insert Dimensions- 57 x 27 mm (2.24" x 1.06")
  • Approvals- UL, CUL
