The ILME MNDS-10IO25 kit is size 57.27 with 10 pole male & female screw terminal inserts, a metal side entry hood and a metal double lever base. The hood thread is size M25. Insert dimensions 57 x 27 mm. Rated IP 66. The MNDS-10IO25 features a clamping force that is constant due to the stainless steel locking system. It has a life expectancy of over 500 cycles. These connector kits can be used in many different types of applications, including automation, food processing, robotics, transportation, injection molding and material handling.

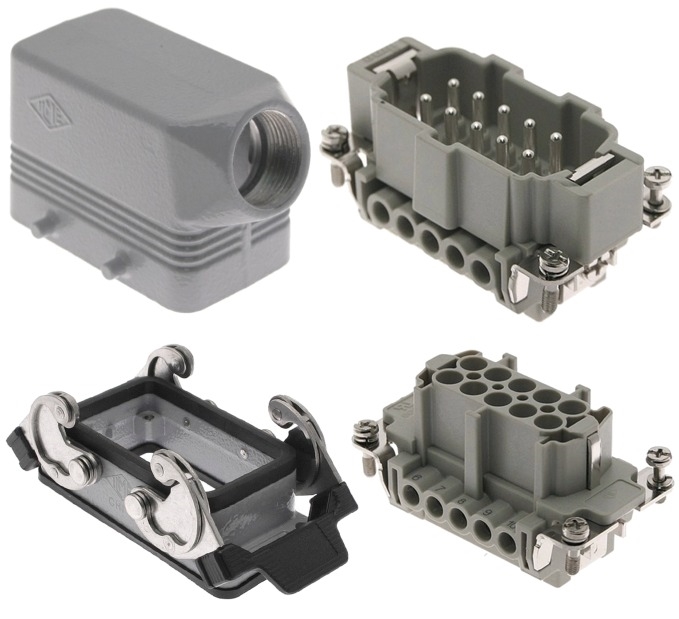

Included Components

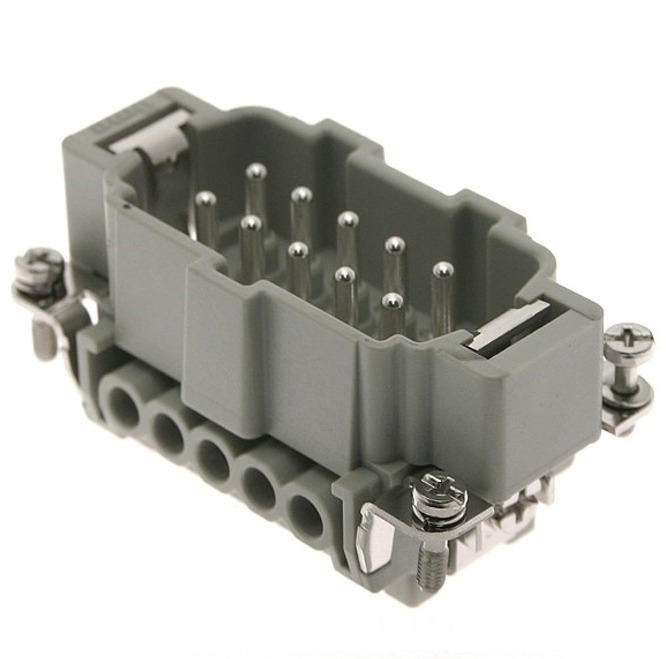

Male Insert:
CNEM-10T
Female Insert: CNEF-10T
Base: CHI-10
Hood: MHO-10.25
Specifications
- Pin Count- 10
- ILME Series- KIT
- Housing Type- Standard
- Insert Dimension- 57.27
- Enclosure Dimension- 57.27
- Termination- Screw
- Enclosure Type- Double Lever
- Mounting Style- Panel Mount
- Hood Entry- Side
- Hood Thread- M25
- Pegs- 4 Pegs
- Gasket- Yes
- Number of Entries- 1
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Insert Dimensions- 57 x 27 mm (2.24" x 1.06")
- Approvals- UL, CUL
ILME 10 Pin Insert M25 Side Entry Hood Kit MNDS-10IO25
|
|
|
 |
|
 |
|
