ILME CHP-32L C-Type Surface Mount Housing, Size 77.62, 1 Lever, PG 36

ILME CHP-32L 77.62 Housing

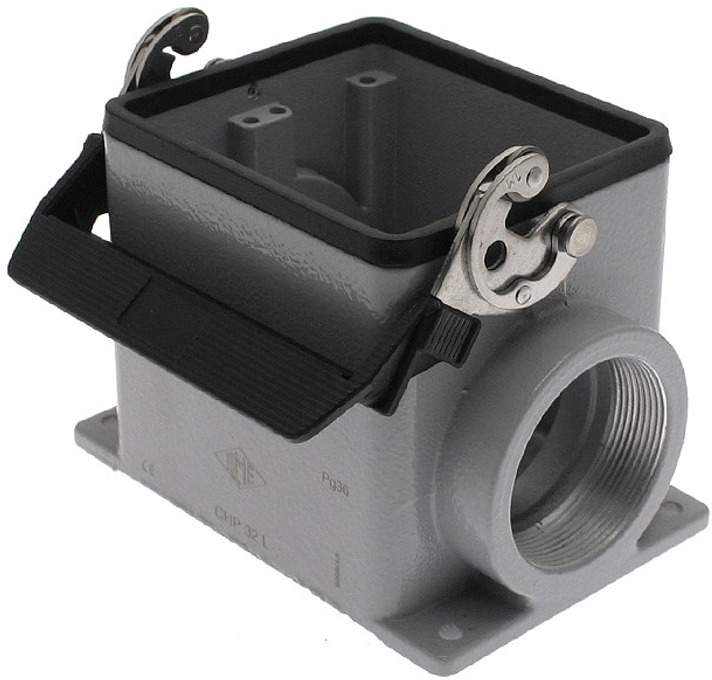

ILME C-Type Surface Mount Housing, Size 77.62, 1 Lever, PG 36 - CHP-32L



Alternative Views:


Our Price: $46.48
MFG P/N: CHP-32L
MFG: ILME
Weight (lbs): 1.557


Availability:
Call for Availability
Product Code: CHP-32L
Qty:


Description


The ILME CHP-32L C-Type surface mount standard housing is size 77.62 and features 1 lever with a PG 36 cable entry. The body is epoxy coated die cast aluminum with a polyamide handle and stainless steel lever. Insert center distance: 2 x (77.5 x 27)mm. Rated IP 66 when attached and locked down. The CHP-32L supplies a constant clamping force due to the stainless steel locking system. The double size can accommodate two corresponding inserts (the standard insert and the corresponding N insert complete the polarity).

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • Gasket- Thermoplastic Elastomer
  • Handle- Polyamide
  • Lever- Stainless Steel
  • ILME Series- CH
  • Insert Dimension- 77.62
  • Enclosure Dimension- 77.62
  • Housing Type- Standard
  • Enclosure Type- 1 Lever
  • Mounting Style- Surface Mount
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Hood Entry- Side

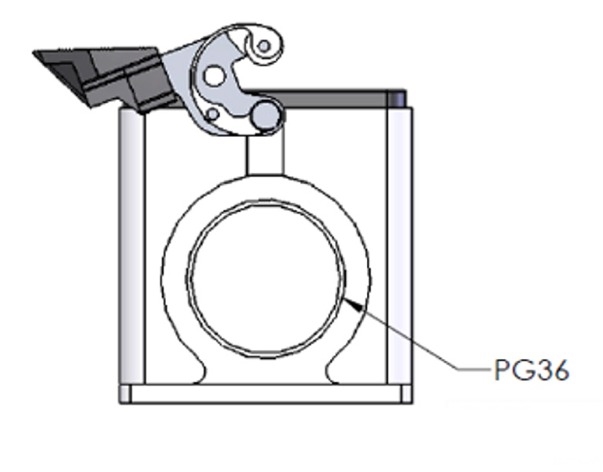

  • Hood Thread- PG 36
  • Gasket- Yes
  • Ingress Protection- IP 66 when attached and locked down

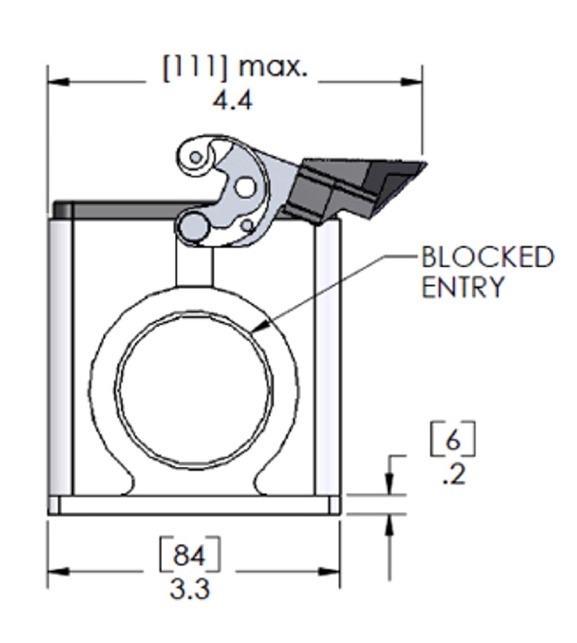

  • Insert Center Distance- 2 x (77.5 x 27) mm
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CD CDF-40, CDM-40
CDD CDDF-72, CDDM-72
CDDF-72N, CDDM-72N
CQE CQEF-32, CQEF-32N
CQEM-32, CQEM-32N
CSH CSHF-16, CSHF-16N
CCE CCEF-16, CCEF-16N
CCEM-16, CCEM-16N
CNE, CSE CNEF-16T, CNEF-16TN, CSEF-16, CSEF-16N
CNEM-16T, CNEM-16TN, CSEM-16, CSEM-16N
CSS CSSF-16, CSSF-16N
CSSM-16, CSSM-16N
CP CPF-06, CPF-06N
CPM-06,CPM-06N

CHP-32L PG 36 Double Size 77.62 Surface Mount Base
