ILME CSSM-16N CSS Series Insert, Male, Size 77.27, 16 Pin (17-32)

ILME CSSM-16N
ILME CSS Series Insert, Male, Size 77.27, 16 Pin (17-32) - CSSM-16N



Alternative Views:


Our Price: $88.07
MFG P/N: CSSM-16N
MFG: ILME
Weight (lbs): 0.27


Availability:
Call for Availability
Product Code: CSSM-16N
Qty:


Description

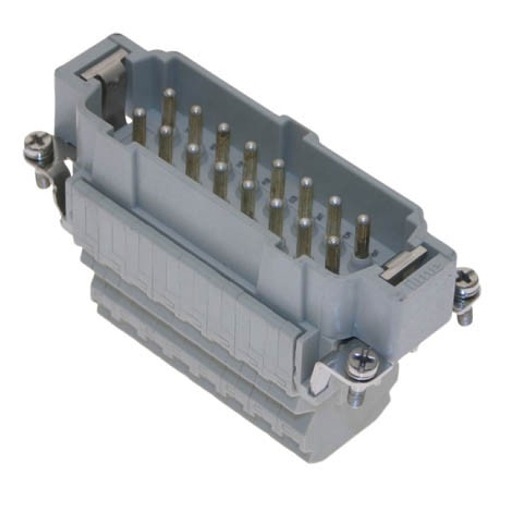

The ILME CSSM-16N CSS series standard male insert is designed to be used with 77.62 enclosures and is 16 pin + ground, with a voltage rating of 600V and a rated current of 16A. The reinforced thermoplastic housing is self-extinguishing and is rated UL 94 V0. Rated IP 20. Termination: standard spring. Silver plated contacts. The dual entry spring permits two wires to be terminated at the same contact pin. It can be mated with CNE, CSE, CCE, and CSH inserts. The CSSM-16N supplies pins 17-32 for double size 77.62 enclosures.

Specifications

  • Housing- Reinforced Thermoplastic
  • Gender- Male
  • Pin Count- 16 + Ground
  • Rated Current- 16 Amps
  • Rated Voltage- 600 V
  • ILME Series- CSS
  • Insert Type- Standard
  • Operating Temperature- -40 C to 125 C (-40 F to 257 F)
  • Insert Dimension- 77.27
  • Double Insert- 77.62
  • Enclosure Dimension- 77.27
  • Termination- Standard Spring
  • Upper AWG- 14
  • Lower AWG- 26
  • Insulation Resistance- >= 10 GOhm
  • Mechanical Life- >= 500 Cycles
  • Contact Resistance- <= 3 mOhm
  • Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
  • Approvals- UL, CSA, CCC, GOST

Compatible Enclosures

Series Part Number
CH, CA CHI-32, CHI-32CS, CHI-32L, CHI-32LS
CH, CA CHP-32.29, CHP-32.229, CHP-32, CHP-32.42, CHP-32L
CHP-32L2, CHP-32LS29, CHP-32LS, CHP-32LS2
CH, CA CHO-32, CHO-32.42, CHO-32.29, CHO-32X, CHO-32L, CHV-32
CHV-32.29, CHV-32.42, CHV-32L, CHV-32X, CHV-32G29
CHV-32G, CHV-32LG, CHV-32X, CHC-32, CHC-32L
CHC-32G, CHC-32LG

ILME CSSM-16N 77.27 16 Pin Male Insert for 77.62 Housing
