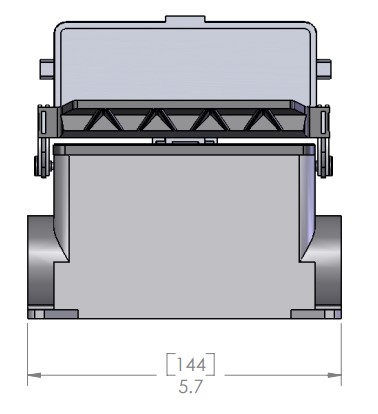

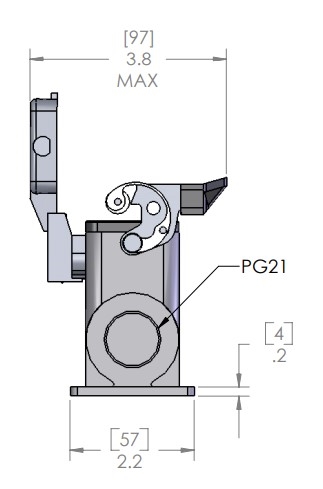

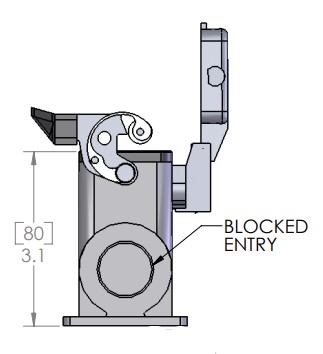

The ILME CAP-24LS C-Type surface mount standard housing is size 104.27 and features a single lever with cover and a PG 21 cable entry. The body is epoxy coated die cast aluminum with a polyamide handle and stainless steel lever. Insert center distance: 104 x 27 mm. Rated IP 65 when attached and locked down. The clamping force supplied by the CAP-24LS is constant due to the stainless steel locking system.
Specifications
- Body- Epoxy Coated Die Cast Aluminum
- Gasket- Thermoplastic Elastomer
- Handle- Polyamide
- Lever- Stainless Steel
- ILME Series- CA
- Housing Type- Standard, Metallic
- Insert Dimension- 104.27
- Enclosure Dimension- 104.27
- Enclosure Type- 1 Lever
- Mounting Style- Surface Mount
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Hood Entry- Side
- Hood Thread- PG 21
- Gasket- Yes
- Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
- Insert Center Distance- 104 x 27 mm (4.09" x 1.06")
- Approvals- UL, CUL, RoHS Compliant
Compatible Inserts
|
Series
|
Part Number
|
|
CD
|
CDF-64, CDM-64
|
|
CDD
|
CDDF-108, CDDM-108
|
|
CQE
|
CQEF-46, CQEM-46
|
|
CSH, CDSH
|
CSHF-24, CSHM-24
CDSHM-42, CDSHF-42
|
|
CCE
|
CCEF-24, CCEM-24
|
|
CNE, CSE
|
CNEF-24T, CNEF-24TX, CNEM-24T, CNEM-24TX
CSEF-24, CSEM-24
|
|
CSS
|
CSSF-24, CSSM-24
|
|
CX
|
CXF-4/8, CXM-4/8
|
104.27 Surface Mount Base with PG 29 Cable Entry CAP-24LS
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
