ILME CSEM-24 CSE Series Insert, Male, Size 104.27, 24 Pin, 16A

CSEM-24

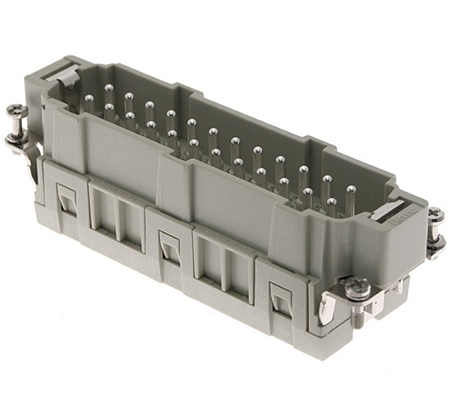

ILME CSE Series Insert, Male, Size 104.27, 24 Pin, 16A - CSEM-24



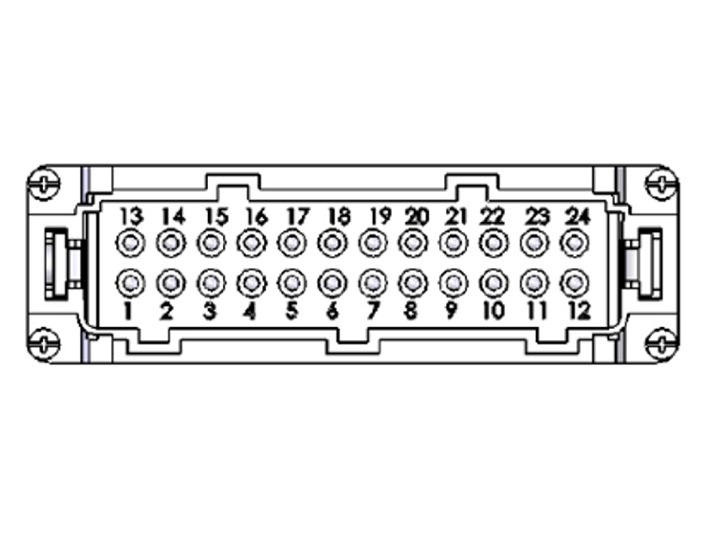

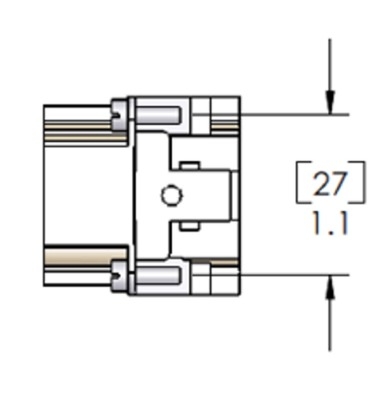

Alternative Views:


Our Price: $19.07
MFG P/N: CSEM-24
MFG: ILME
Weight (lbs): 0.25


Availability:
Call for Availability
Product Code: CSEM-24
Qty:


Description


The ILME CSEM-24 CSE series standard male insert fits size 104.27 enclosures and is 24 pin + ground with a voltage rating of 600V and a rated current of 16A. The housing is glass reinforced thermoplastic with silver plated contacts. The thermoplastic on the housing is self-extinguishing and is rated UL 94 V0. Rated IP 20. Termination: spring. Operating temperature: -40 C to 125 C (-40 F to 257 F). The CSEM-24 is especially useful when a fast, easy disconnect is needed.

Specifications

  • Housing- Glass Reinforced Thermoplastic
  • Contacts- Silver Plated
  • Gender- Male
  • Pin Count- 24 + Ground
  • Rated Current- 16 Amps
  • Rated Voltage- 600 V
  • ILME Series- CSE
  • Housing Type- Standard
  • Insert Dimension- 104.27
  • Double Insert- 104.62
  • Enclosure Dimension- 104.27
  • Termination- Spring
  • Upper AWG- 14
  • Lower AWG- 26
  • Insulation Resistance- >= 10GOhm
  • Mechanical Life- >= 500 Cycles
  • Contact Resistance- <= 3mOhm
  • Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
  • Approvals- UL, CSA, CCC, GL, GOST

Compatible Enclosures

Series Part Number
CH CHI-24, CHI-24C, CHI-24CP, CHI-24CS, CHI-24L, CHI-24LS
CH, CA CHP-24, CHP-24.2, CHP-24L, CHP24-LS, CHP-24LS2
CAP-24.21, CAP-24.229, CAP-24.29, CAP-24CS29
CAP-24L, CAP-24L2, CAP-24L229, CAP-24L29, CAP-24LS229
CAP-24LS2, CHP-24L2, CAP-24CS
CH, CA, MA CHO-24, CHV-24, CHV-24.29, CHV-24L, CHV-24L29, CHO-24L
CAO-24.21, CAO-24.29, CAO-24L21, CAO-24L29, CAV-24.21
CAV-24.29, CAV-24L21, CAV-24L29, CAV-24.221, CAV-24.229
CAF-24.21, CAF-24.29, CAF-24.221, MAO-24.40, MAO-24.32
MAO-24L40, MAV-24L40, MAV-24.32, MAV-24.40
CH, CA, MH CHV-24G, CHV-24LG, MHV-24L32, MHO-24L32, MHO-24.32
CAV-24LG21, CAV-24LG29, CAV-24G, CAV-24G29, MHO-24L25
MHV-24.32, MHO-24.25, MHV-24L25, MHV-24.25
CH, CA CHO-24X, CHC-24, CHC-24C, CHC-24L, CHC-24LG, CHV-24X
CAO-24X, CAO-24X29, CAV-24X29, CHC-24G, CAV-24X
CH, CA CHIW-24, CHCW-24, CHOW-24, CHVW-24, CHVW-24G,
CAVW-24.29, CAOW-24.29
CH, CA CHIS-24
CH, CA CHI-24YC
CAV-24YX29, CAO-24YX21
CQ CQV-24, CQO-24
TC, TM TCHI-24, TCHC-24
TMAP-24.32, TMAP-24.40, TMAO-24.32, TMAO-24.40
JCVI JCVI-24, JCVI-24L
CG CGI-24B, CGC-24B

ILME 104.27 24 Pin Male Insert with Spring Termination CSEM-24
