The ILME CHVT-32.6 C-Type standard metallic hood is size 77.62 and features 4 pegs with a 1" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 2 x (77.5 x 27)mm. Rated IP 66. The CHVT-32.6 has a life expectancy over 500 cycles and is double size to accommodate up to two compatible inserts (the standard insert and the corresponding N insert complete the total polarity).
Specifications
- Body- Epoxy Coated Die Cast Aluminum
- ILME Series- CH
- Insert Dimension- 77.62
- Enclosure Dimension- 77.62
- Housing Type- Metallic, Standard
- Enclosure Type- Hoods for 2 Levers
- Mounting Style- Cable
- Hood Entry- Top
- Hood Thread- 1" NPT
- Pegs- 4 Pegs
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Insert Center Distance- 2 x (77.5 x 27) mm
- Approvals- UL, CUL, RoHS
Compatible Inserts
|
Series
|
Part Number
|
|
CD
|
CDM-40, CDF-40
|
|
CDD
|
CDDF-72, CDDM-72
CDDF-72N, CDDM-72N
|
|
CQE
|
CQEF-32, CQEM-32
|
|
CSH, CDSH
|
CSHF-16
CDSHF-27, CDSHF-27N
CDSHM-27N
|
|
CCE
|
CCEF-16, CCEM-16
|
|
CNE
|
CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
|
|
CSS
|
CSSF-16, CSSM-16
|
|
CME
|
CMEF-06T, CMEM-06T
|
|
CP
|
CPF-06, CPM-06
|

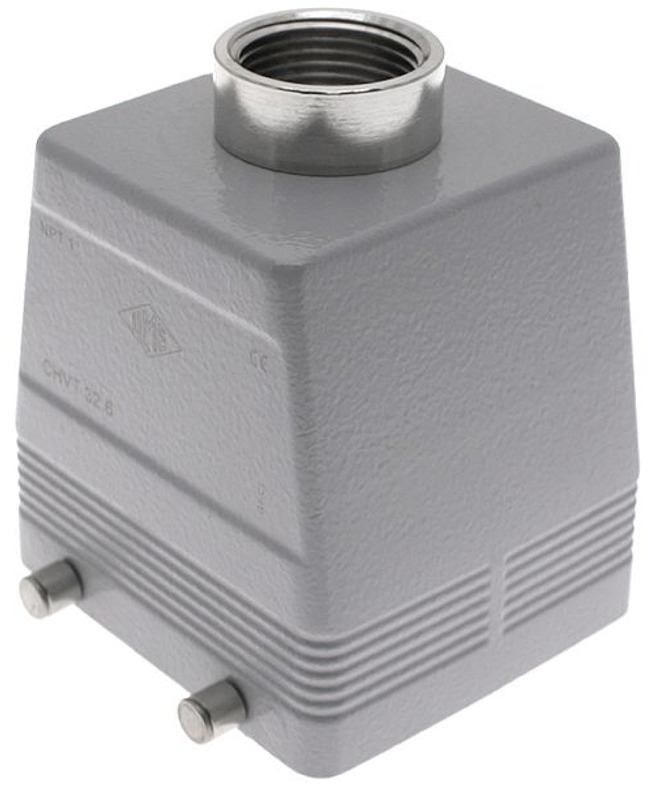

CHVT-32.6 Top 1" NPT Cable Entry 77.62 Hood with 4 Pegs
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
