ILME C-Type Metallic Hood, Size 77.62, 1" NPT, 2 Levers


ILME CHVT-32.6G
ILME CHVT-32.6G C-Type Metallic Hood, Size 77.62, 1" NPT, 2 Levers

Price: $75.45
MFG P/N: CHVT-32.6G
MFG: ILME
Weight (lbs): 1.2



Availability:
In Stock
Product Code: CHVT-32.6G
Qty:


Description

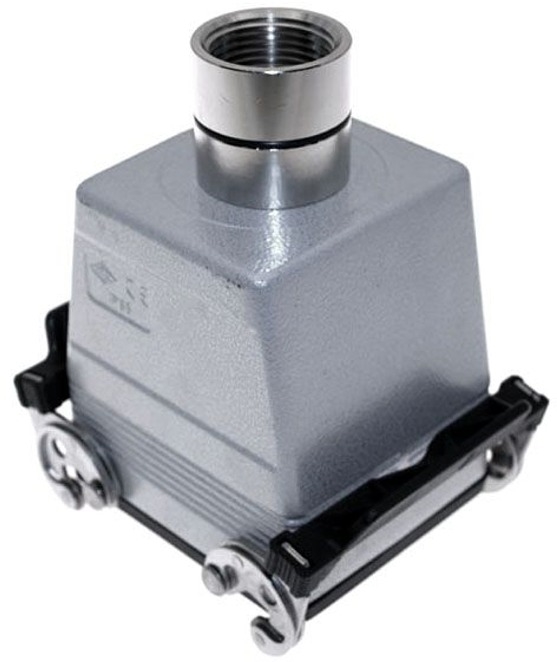

The ILME CHVT-32.6G C-Type standard metallic hood is size 77.62 and features 2 levers with a 1" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 2 x (77.5 x 27)mm. Rated IP 66. The CHVT-32.6G has a life expectancy over 500 cycles and is double size to accommodate up to two compatible inserts (the standard insert and the corresponding N insert complete the total polarity).

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • ILME Series- CH
  • Insert Dimension- 77.62
  • Enclosure Dimension- 77.62
  • Housing Type- Metallic, Standard
  • Enclosure Type- 2 Levers
  • Mounting Style- Cable
  • Hood Entry- Top
  • Hood Thread- 1" NPT
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Insert Center Distance- 2 x (77.5 x 27) mm
  • Approvals- UL, CUL

Compatible Inserts

Series Part Number
CD CDM-40, CDF-40
CDD CDDF-72, CDDM-72
CDDF-72N, CDDM-72N
CQE CQEF-32, CQEM-32
CSH, CDSH CSHF-16
CDSHF-27, CDSHF-27N
CDSHM-27N
CCE CCEF-16, CCEM-16
CNE CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
CSS CSSF-16, CSSM-16
CME CMEF-06T, CMEM-06T
CP CPF-06, CPM-06
