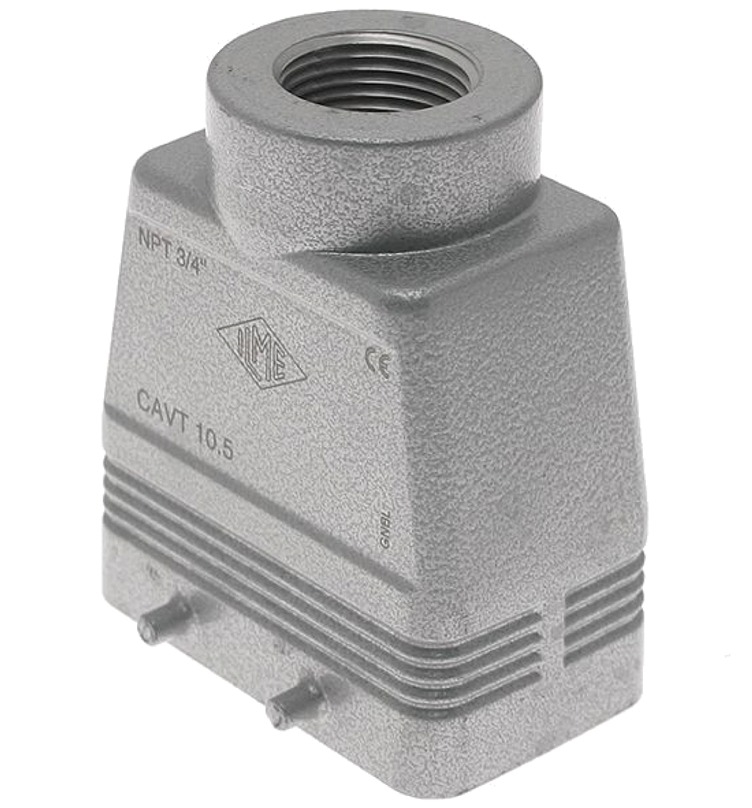

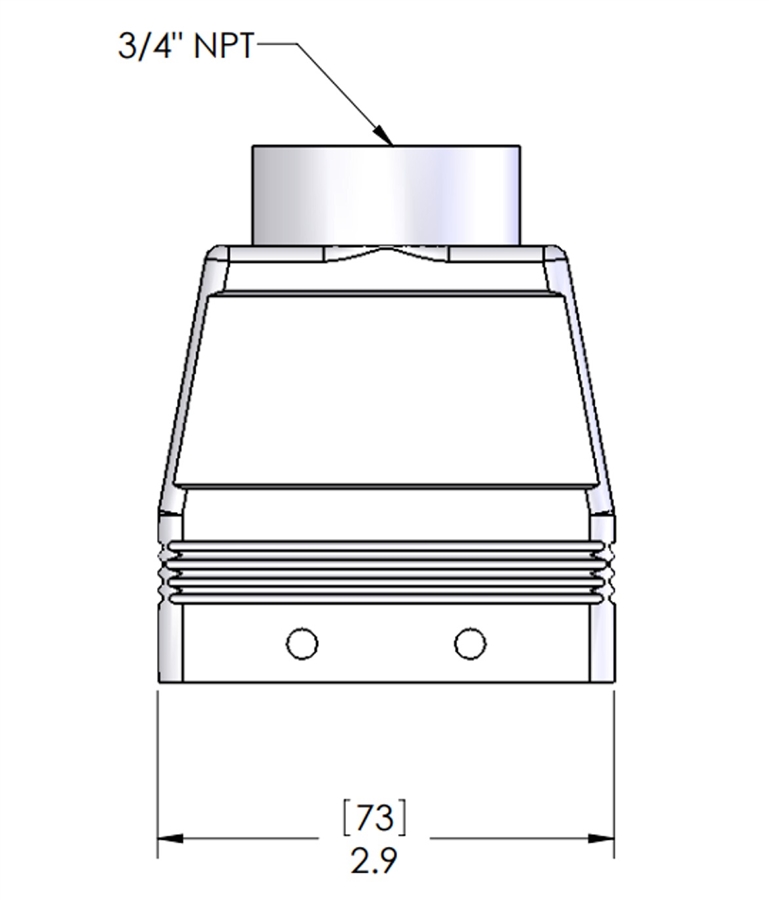

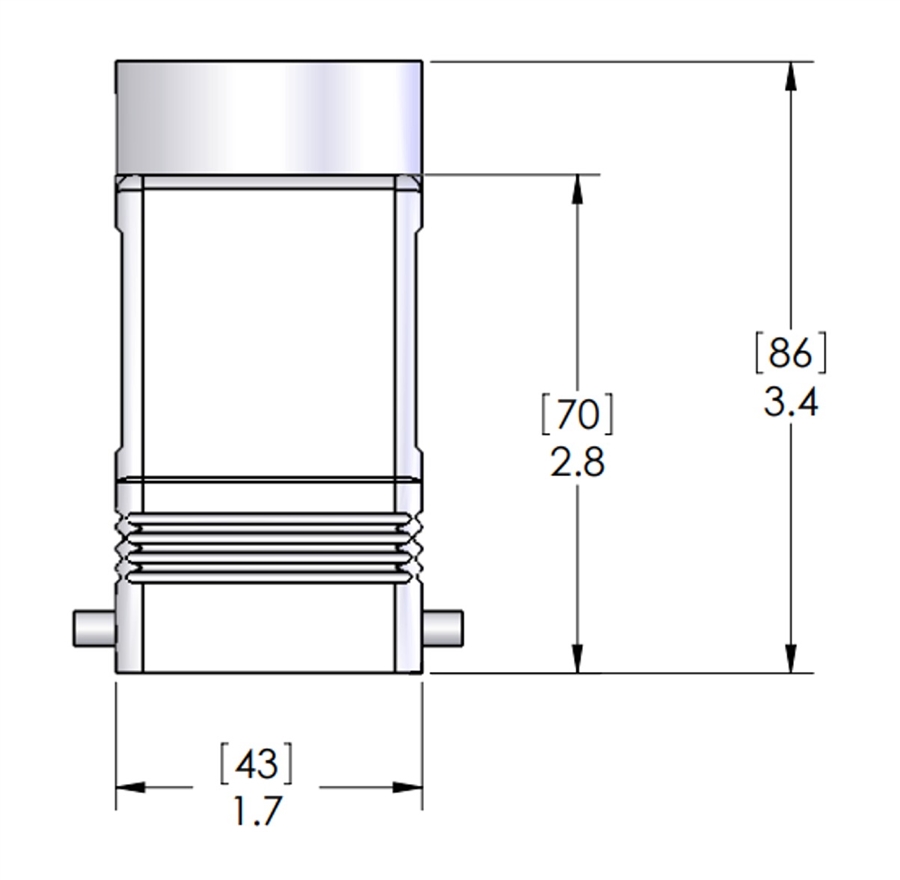

The ILME CAVT-10.5 C-Type standard metallic hood is size 57.27 and features 4 pegs with a 3/4" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 57 x 27 mm (2.24" x 1.06"). Rated IP 66. The CAVT-10.5 is durable and has a life expectancy over 500 cycles.
Specifications
- Body- Epoxy Coated Die Cast Aluminum
- ILME Series- CA
- Insert Dimension- 57.27
- Enclosure Dimension- 57.27
- Housing Type- Metallic, Standard
- Enclosure Type- Hoods for 2 Levers
- Mounting Style- Cable
- Hood Entry- Top
- Hood Thread- 3/4" NPT
- Pegs- 4 Pegs
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
Compatible Inserts
|
Series
|
Part Number
|
|
CDD
|
CDDF-42, CDDM-42
|
|
CQE
|
CQEF-18, CQEM-18
|
|
CSH, CDSH
|
CSHF-10, CSHM-10, CDSHM-18, CDSHF-18, CMSHF-03, CMSHM-03
|
|
CCE
|
CCEF-10, CCEM-10
|
|
CNE, CSE
|
CNEF-10T, CNEM-10T, CNEF-10TX, CNEM-10TX
CSEF-10, CSEM-10
|
|
CSS
|
CSSF-10, CSSM-10
|
|
CMSE
|
CMSEF-03, CMSEM-03
|
|
CMCE
|
CMCEF-03
CMCEM-03
|
|
CX
|
CXF-8/24, CXM-8/24
|
