HTP 12F14000 M12 Connector, 4 Pin, Female Straight, 5-8 mm

HTP 12F14000 M12 Female Straight Connector

Alternative Views:

Price: $41.25

Note: Delivery: 2-5 Business Days
MFG P/N: 12F14000
MFG: HTP
Weight (lbs): 0.1

Quantity in Stock :9

Availability: In Stock
Product Code: M124PFEMST

Qty:

Description

The HTP 12F14000 M12 female straight connector features a 4 pin insert with a 5-8 mm cable entry. The housing is nickel plated brass with a nickel plated brass coupling nut and NBR O-Ring. Connector is rated at 250V and 4 A. Protection class IP 67 for water and dust protection. These types of connectors are classified by their M12 coupling nut.

Specifications

Housing- Nickel Plated Brass
Type of Contact- Female Straight
Number of Pins- 4

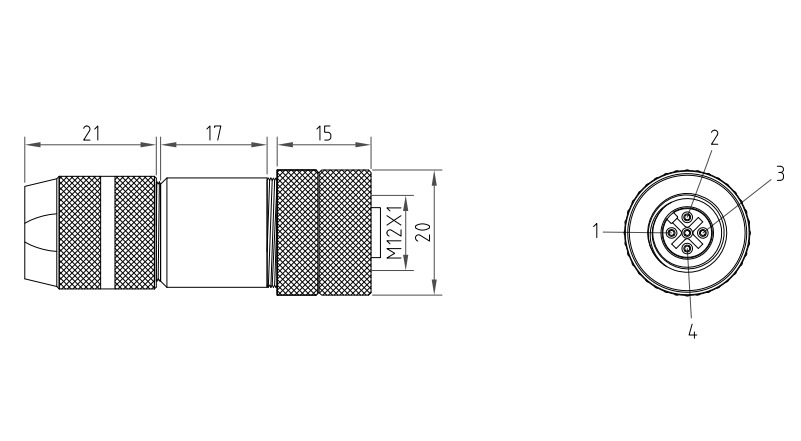

Overall Dimensions- 53 mm x 20 mm (2.09" x 0.79")
Rated Voltage- 250V AC/DC
Rated Current- 4 Amps
Protection Class- IP 67 (Total protection from dust and temporary immersion in water - 1 meter for up to 30 minutes)
Coupling Nut- Nickel Plated Brass
O-Ring- NBR
Cable Entry- 5-8 mm O.D.
