Mencom MEC-4FP-FW07 B-Coded M12 Plug, 4 Pole, Female Straight, 3-6.5mm, PG 7

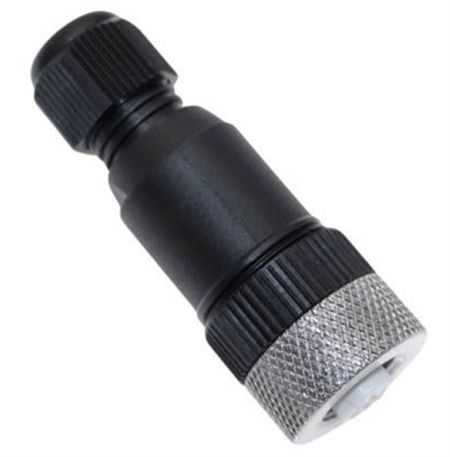

Mencom M12 Plug - MEC-4FP-FW07
Mencom MEC-4FP-FW07 B-Coded M12 Plug, 4 Pole, Female Straight, 3-6.5mm, PG 7



Alternative Views:


Price: $17.39
MFG P/N: MEC-4FP-FW07
MFG: Mencom
Weight (lbs): 0.07

Quantity in Stock :9


Availability:
In Stock
Product Code: MEC-4FP-FW07
Qty:


Description


The Mencom MEC-4FP-FW07 Euro-AC (M12) female straight field wireable plug features a 4 pin insert. The PG 7 cable entry accepts 3-6.5 mm cable. The body is black polyamide with gold plated copper alloy contacts. The MEC-4FP-FW07 has a rated voltage of 250V and a rated current of 4A. This M12 connector can be wired by inserting the wires into the screw terminal contacts. It is liquid tight and compatible with other Mencom MEC connectors. Rated IP67. Operating temperature: -25 C to 85 C (-13 F to 185 F). Mencom MEC B-Coded hardwired plugs are known by their M12 coupling nut and have plug and play capability for a number of applications.

Specifications

  • Body- Polyamide
  • Insulator- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Seal- NBR
  • Overall Dimensions- 2.3" Length x 0.8" Diameter
  • Rated Voltage- 250 V
  • Rated Current- 4 Amps
  • Pin Count- 4
  • Upper AWG- 18
  • Lower AWG- 24
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Orientation Head- Female Straight
  • Coupling Thread- Female
  • Mating Thread/Type Head- M12
  • Nut- No
  • Gland Upper Range- 6.5 mm
  • Gland Lower Range- 3 mm
  • Connection- Screw Terminals
  • Approvals- UL & CUL Listed

Mencom MEC-4FP-FW07 B-Coded 4 Pole M12 Hardwired Cable Socket
