Mencom DP1-RJ45-R-16LS Panel Interface Connector, Simplex outlet, RJ45, 3A Reset, 16LS housing

Mencom DP1-RJ45-R-16LS
Mencom DP1-RJ45-R-16LS Panel Interface Connector, Simplex outlet, RJ45, 3A Reset, 16LS housing

Alternative Views:
Price: $108.96
Note: Delivery: 2-5 Business Days
MFG P/N: DP1-RJ45-R-16LS
MFG: Mencom
Weight (lbs): 1

Quantity in Stock :10


Availability: In Stock
Product Code: DP1-RJ45-R-16LS
Qty:


Description

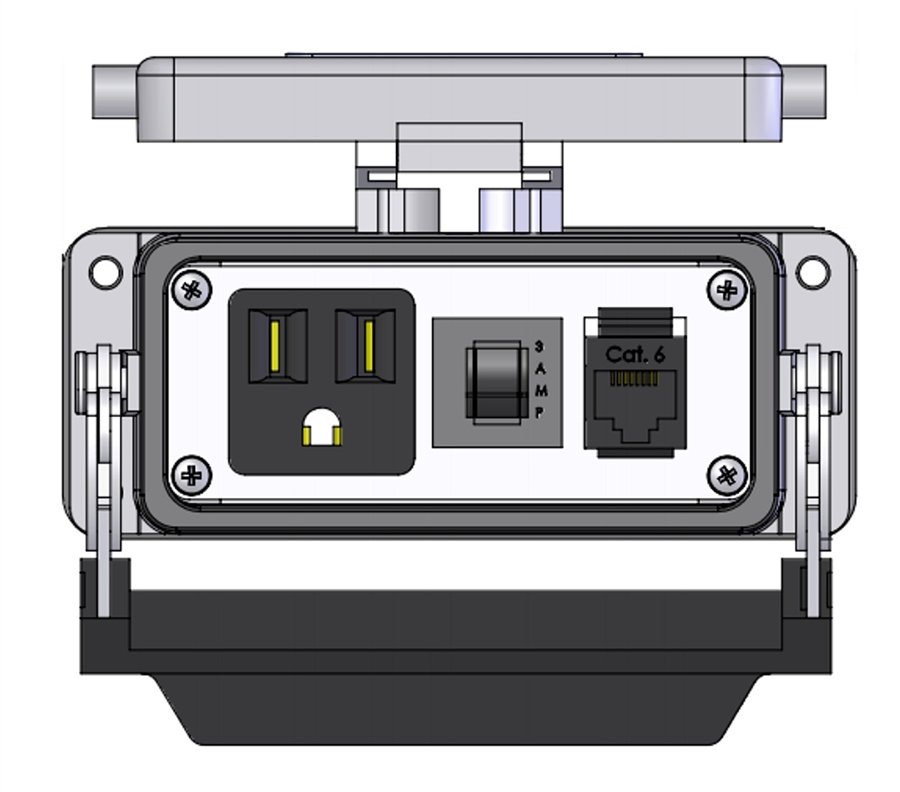

The Mencom DP1-RJ45-R-16LS panel interface connector (PIC) features a 120V Simplex receptacle, female/female RJ45 Ethernet port and a 3 amp resettable fuse in a size 16 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet.

Specifications

  • Body- Epoxy coated die cast aluminum
  • Gasket- Thermoplastic elastomer
  • Handle- Polyamide
  • Levers- Stainless Steel
  • Volts- 125 V
  • Amps- 3 Amps
  • SCCR- 0.2kA
  • Housing- Size 16 Bulkhead Housing
  • Power Ports- 120V Simplex Receptacle
  • RJ / Ethernet- Ethernet Female / Female
  • Fuse- 3 Amp resettable

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
