Mencom DP1-DB9-R-16LS Panel Interface Connector, Simplex outlet, DB9, 3A Reset, 16LS housing

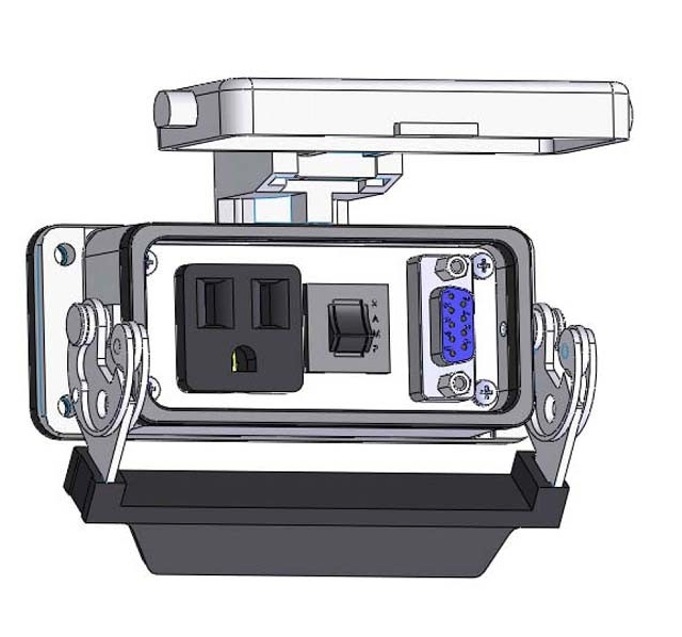

Mencom DP1-DB9-R-16LS Panel Interface Connector
Mencom DP1-DB9-R-16LS Panel Interface Connector, Simplex outlet, DB9, 3A Reset, 16LS housing

Alternative Views:
Price: $116.54
Note: Please call or email [email protected] for alternatives
MFG P/N: DP1-DB9-R-16LS
MFG: Mencom
Weight (lbs): 0.9

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: DP1-DB9-R-16LS
Qty:


Description

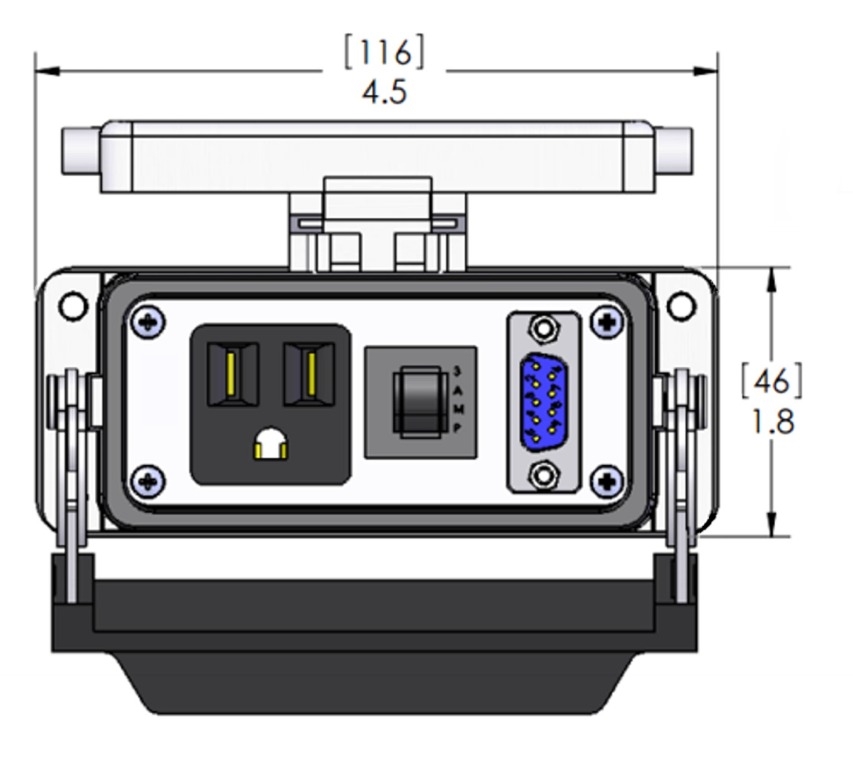

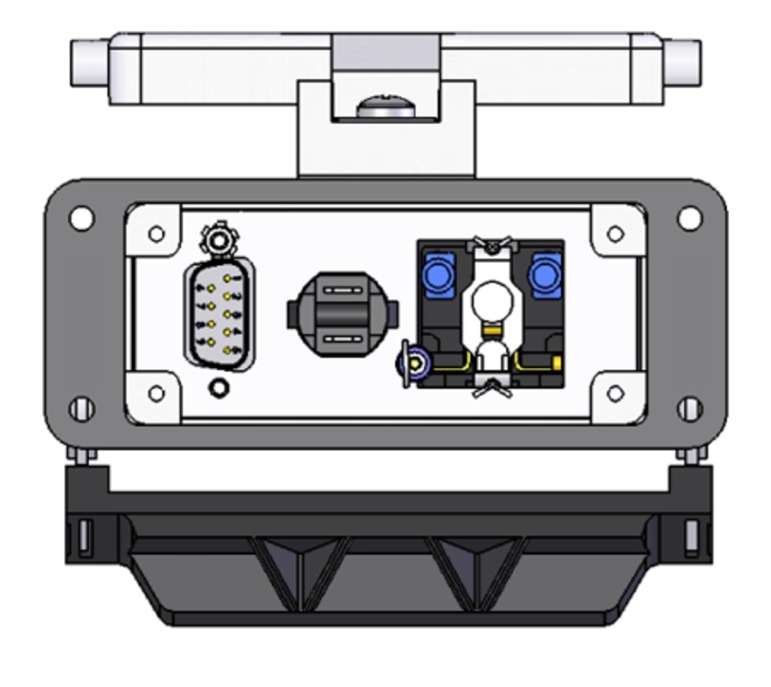

Mencom Panel Interface Connectors (PIC) mount to the exterior of the control panel and allow access to the PLC or PAC without having to open the control cabinet, promoting a safer working environment. The Mencom DP1-DB9-R-16LS PIC features a 120V Simplex receptacle, a 9 Pin Female Ext/Male Interior D-Sub and 3 amp resettable fuse in a size 16 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

  • Body- Epoxy coated die cast aluminum
  • Gasket- Thermoplastic elastomer
  • Handle- Polyamide
  • Levers- Stainless Steel
  • Volts- 125 V
  • Amps- 3 Amps
  • SCCR- 10kA
  • Housing- Size 16 Bulkhead Housing
  • Power Ports- 120V Simplex Receptacle
  • D-Sub- 9 Pin D-Sub Female Ext. / Male Int.
  • Fuses- 3 Amp Resettable Fuse
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
