Mencom MIL-SPEC Cordset, Size 10SL-2, 2 Pole, Female Straight, 10 M


Mencom MS10SL-2FP-10M MIL-SPEC Size 10SL-2 Molded Cable
Mencom MS10SL-2FP-10M MIL-SPEC Cordset, Size 10SL-2, 2 Pole, Female Straight, 10 M

Alternative Views:


Price: $92.64
Note: Please call or email [email protected] for alternatives
MFG P/N: MS10SL-2FP-10M
MFG: Mencom
Weight (lbs): 3

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: MS10SL-2FP-10M
Qty:


Description

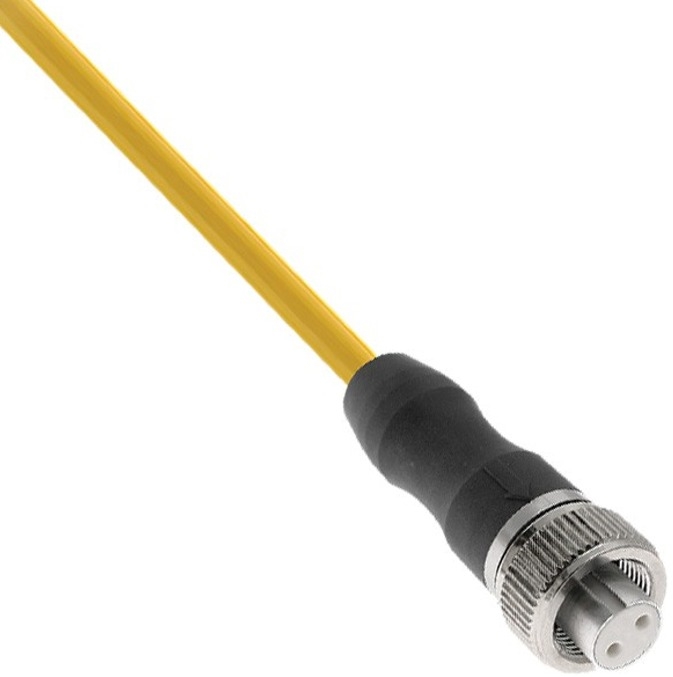

The Mencom MS10SL-2FP-10M MIL-SPEC Size 10SL-2 female straight cordset features a 2 pin insert, 16 AWG wire and 10 meters of cable. The cable is yellow PVC with silver plated copper alloy contacts. The cable is rated at 600V and 105 C. Rated IP 67. Operating temperature: -40 C to 105 C (-40 F to 221 F). The threaded couplings on Mencom MIL-SPEC cordsets let the connector withstand exposure to moisture and vibration once connected. They are intended for the harsher environments found in industrial and automation applications, and are compatible with existing MIL-SPEC 5015 style connectors (5015 cross reference 10SL-4).

Pin A: White
Pin B: Black

Specifications

  • Shell- Nickel Plated Aluminum
  • Contacts- Silver Plated Copper Alloy
  • Cable- 16/2 STOOW Yellow PVC Jacket
  • Gasket- TPE
  • Rated Voltage- 600 V
  • Rated Current- 13 Amps
  • Wire Gauge- 16
  • Pin Count- 2
  • Cable Length- 10 Meter (32.8 Feet)

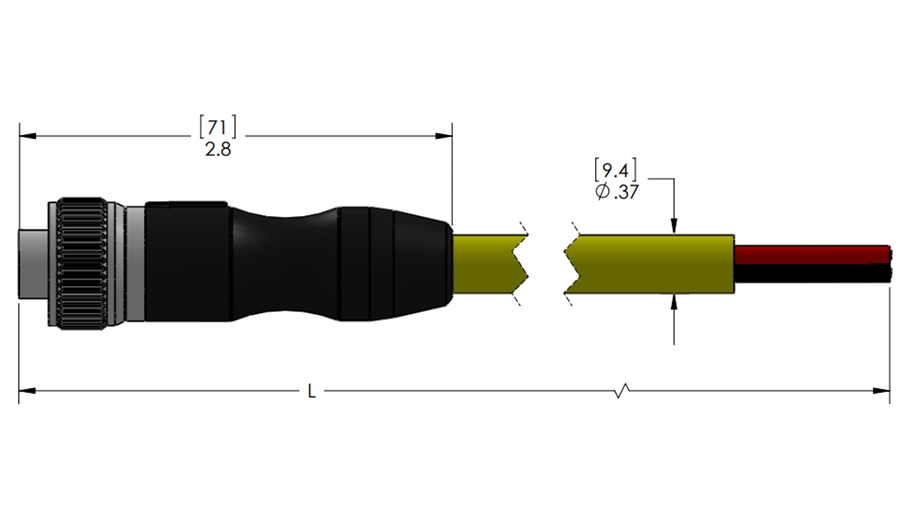

  • Cable O.D.- 0.37
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Orientation Head- Female Straight
  • Coupling Thread- Female

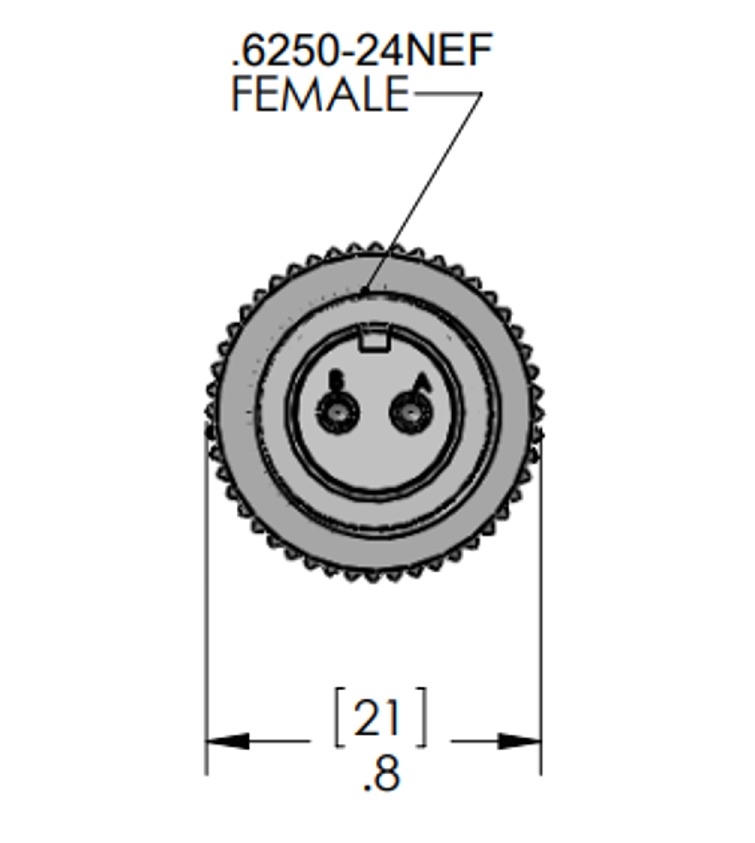

  • Mating Thread / Type Head- 0.6250-24NEF
  • Ground Wire- No
  • Nut- No

Mencom MIL-SPEC 5015 Molded Cordset Part Number Guide
