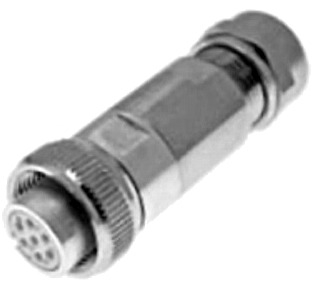

Mencom MS10SL-2FP-FW16-SC MIL-SPEC Connector, Size 10SL-2, 2 Pole, Female Straight

Mencom MS10SL-2FP-FW16-SC MIL-SPEC Size 10SL-2 Connector
Mencom MS10SL-2FP-FW16-SC MIL-SPEC Connector, Size 10SL-2, 2 Pole, Female



Alternative Views:


Our Price: $20.07
MFG P/N: MS10SL-2FP-FW16-SC
MFG: Mencom
Weight (lbs): 0.1


Availability:
Call for Availability
Product Code: MS10SL-2FP-FW16-SC
Qty:


Description


The Mencom MS10SL-2FP-FW16-SC MIL-SPEC Size 10SL-2 female straight hardwired connector features a 2 pin insert. The cable entry accepts 3-9 mm cable. The body is nickel plated brass with silver plated copper alloy contacts. It has a rated voltage of 600V and a rated current of 13 A. Rated IP 67. Operating temperature: -40 C to 105 C (-40 F to 221 F). The threaded couplings on Mencom MIL-SPEC connectors allow them to withstand exposure to moisture and vibration once mated. They are perfect for the harsher environments found in industrial and automation applications, and are compatible with existing MIL-SPEC 5015 style connectors (5015 cross reference 10SL-4). Connection by solder terminals.

Specifications

  • Body- Nickel Plated Brass
  • Contacts- Silver Plated Copper Alloy
  • Insert- PBT
  • Coupling Nut- Nickel Plated Brass
  • Dimensions- 2.5" x 0.8"
  • Rated Voltage- 600 V
  • Rated Current- 13 A
  • Pin Count- 2
  • Cable O.D. Range- M16 3-9 mm
  • Ingress Protection- IP 67
  • Upper AWG- 16
  • Lower AWG- 18
  • Orientation Head- Female Straight
  • Coupling Thread- Female
  • Mating Thread / Type Head- 0.6250-24NEF
  • Nut- No

Mencom MS10SL-2FP-FW16-SC MIL-SPEC Field Wireable Connector
