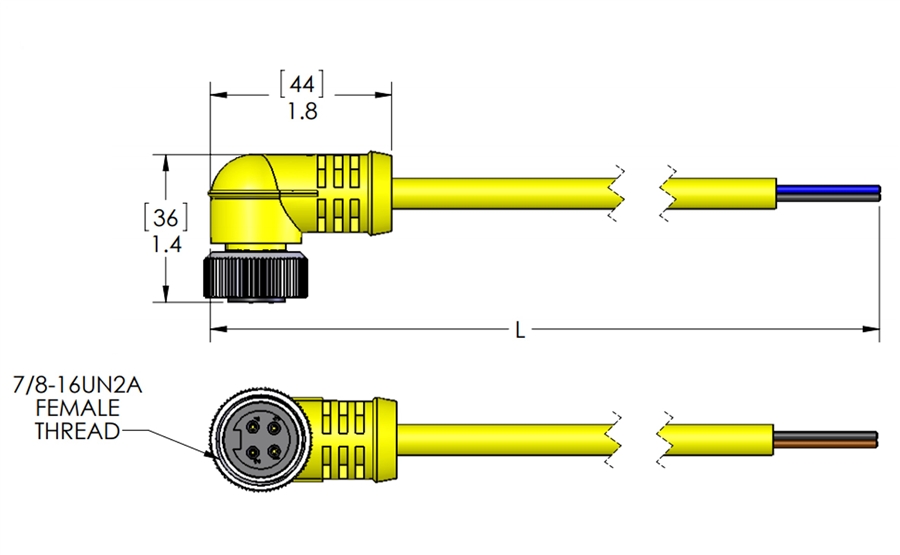

Mencom MINC-4FPX-5M-R MIN Size I Cordset, 4 Pole, Female Right Angle, 18 AWG, 5 M

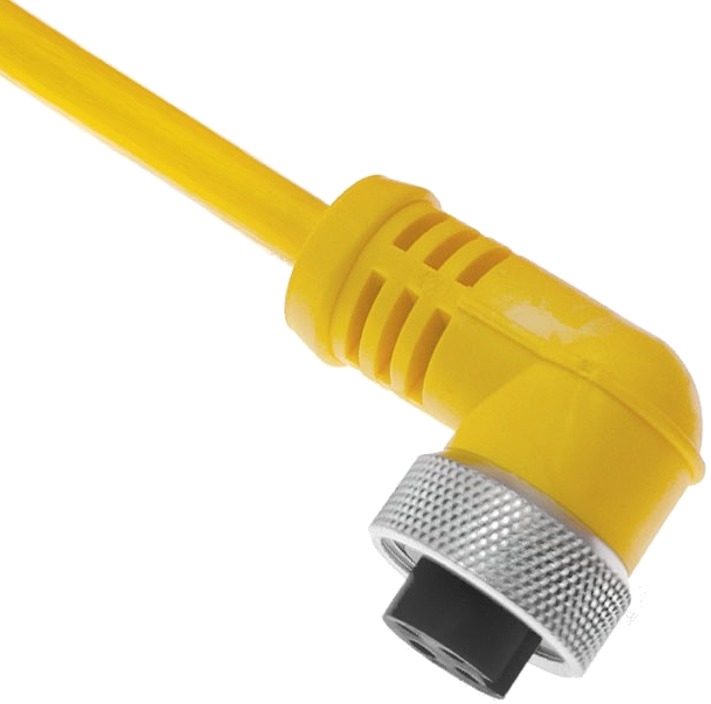

The Mencom MINC-4FPX-5M-R MIN Size I female right angle cordset features a 4 pin insert, 18 AWG wire and 5 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MIN Size I cordsets have 7/8" mating thread & provide plug and play solutions for various applications. European Cenelec color code.

Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black

Specifications

• Body- Yellow PVC
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Cable- 18/4 AWM 2661 Yellow PVC Jacket
• Rated Voltage- 300 V
• Rated Current- 5.5 Amps
• Wire Gauge- 18
• Pin Count- 4
• Cable Length- 5 Meter (16.4 feet)
• Cable O.D.- 0.29
• Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
• Orientation Head- Female Right Angle
• Coupling Thread- Female
• Mating Thread / Type Head- 7/8-16UN2
• Ground Wire- No
• Nut- No
• Approvals- UL & CUL Listed
